Add and manage welding machines for traceability in WeldTrace

Add a Machine

You may add a welding machine or a measuring instrument or other equipment and maintain their qualification and calibration details. Click on the add a machine button in the machines list page.

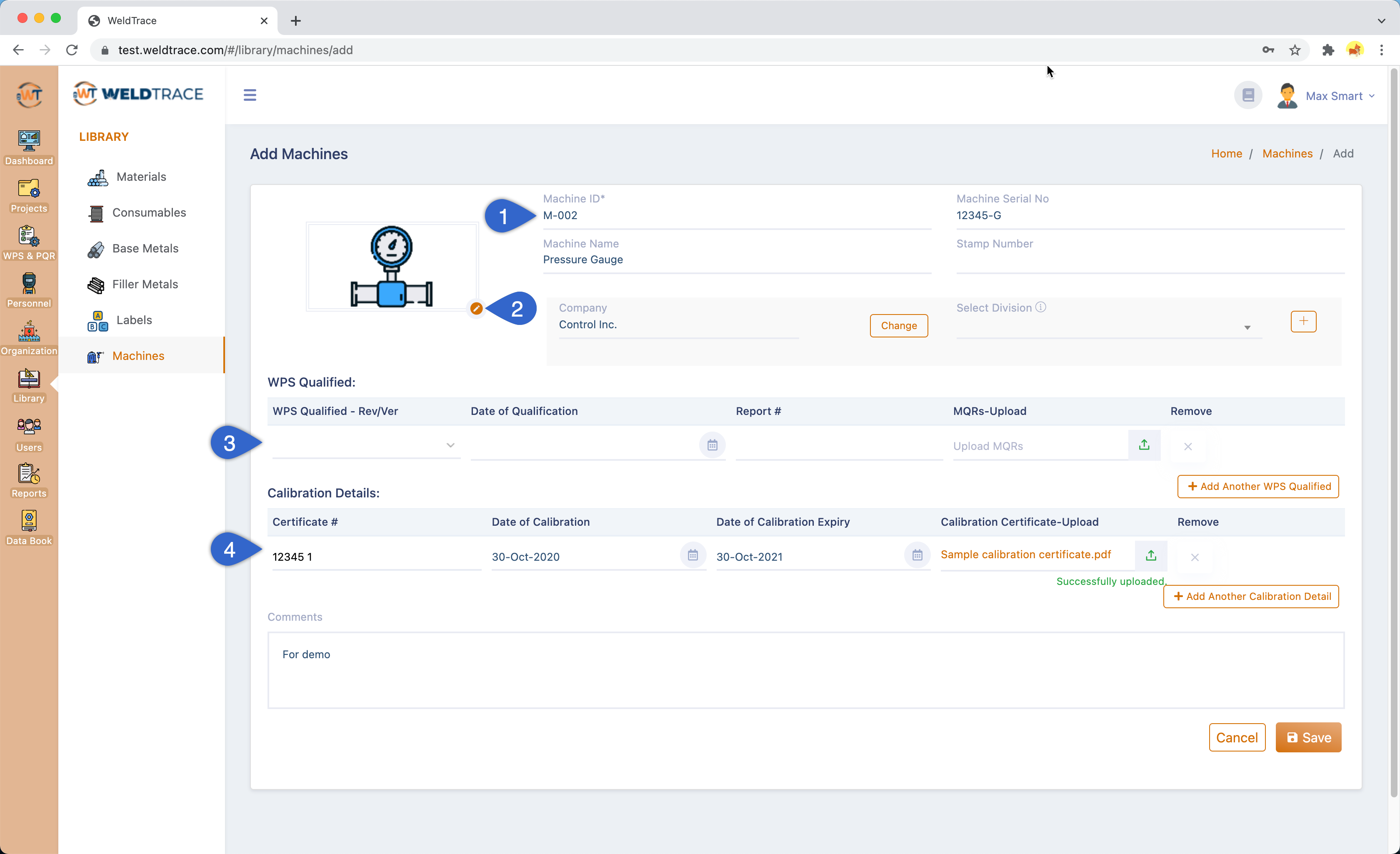

Add a machine or instrument
  1. Enter the machine ID. It is a mandatory field. All the other fields are optional;
  2. You may upload a picture via this button;
  3. If the machine is qualified to a WPS, pick the WPS here and enter the other details;
  4. Enter the calibration details here. You may add additional rows;
Only the machines that are qualified to a WPS will appear in the list of machines in the Weld Log for a project
Read the next article: Base Metals
