Edit a WPS created and approved in WT
This article will show you how to edit a WPS that has been created in WeldTrace and approved.
Edit a WPS
Edit a WPS created in WeldTrace
-

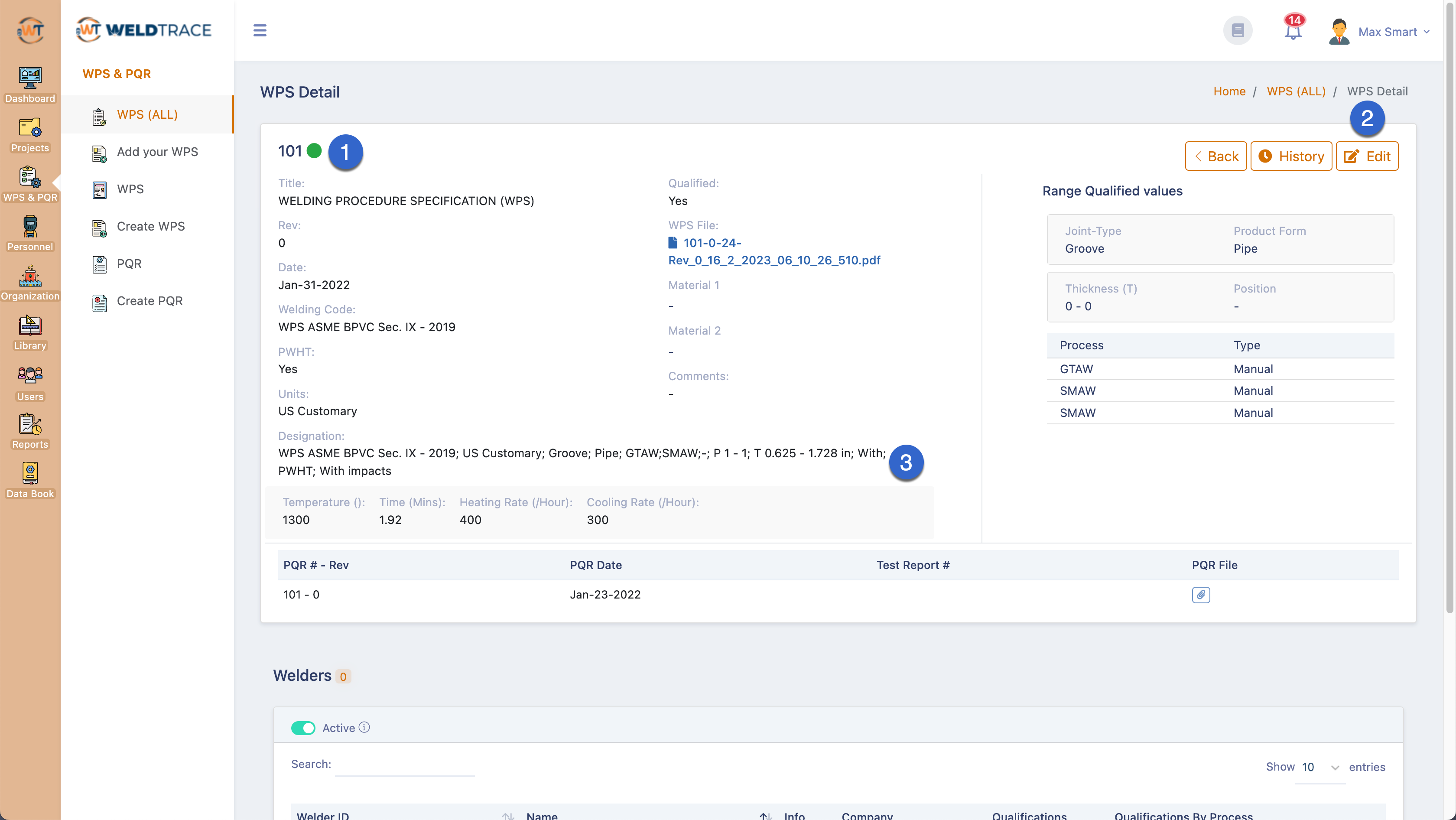

A WPS that is available for use will have this green dot next to the WPS number;
-
Click the edit button in the WPS details page to edit it;
-
You will see the designation value only when you view a WPS created and approved in WeldTrace. This field will not appear when you view the details page of a WPS added to WeldTrace (BYO);
- None of the data of a WPS created in WT can be edited. If you need to change any of the valued, you need to create a new revision of a WPS (How to create a WPS from a PQR);
- Move this slider button to "Inactive";
- Click here to save and the WPS will be marked as inactive, hidden from view and will be unavailable in projects or for creating welder qualifications;
Go to the next section: WPS (Create a code compliant WPS)
