Import Materials List

For general information on how to import data with a csv or spreadsheet file, please refer this article: https://support.weldtrace.com/portal/en/kb/articles/import-data-spreadsheet

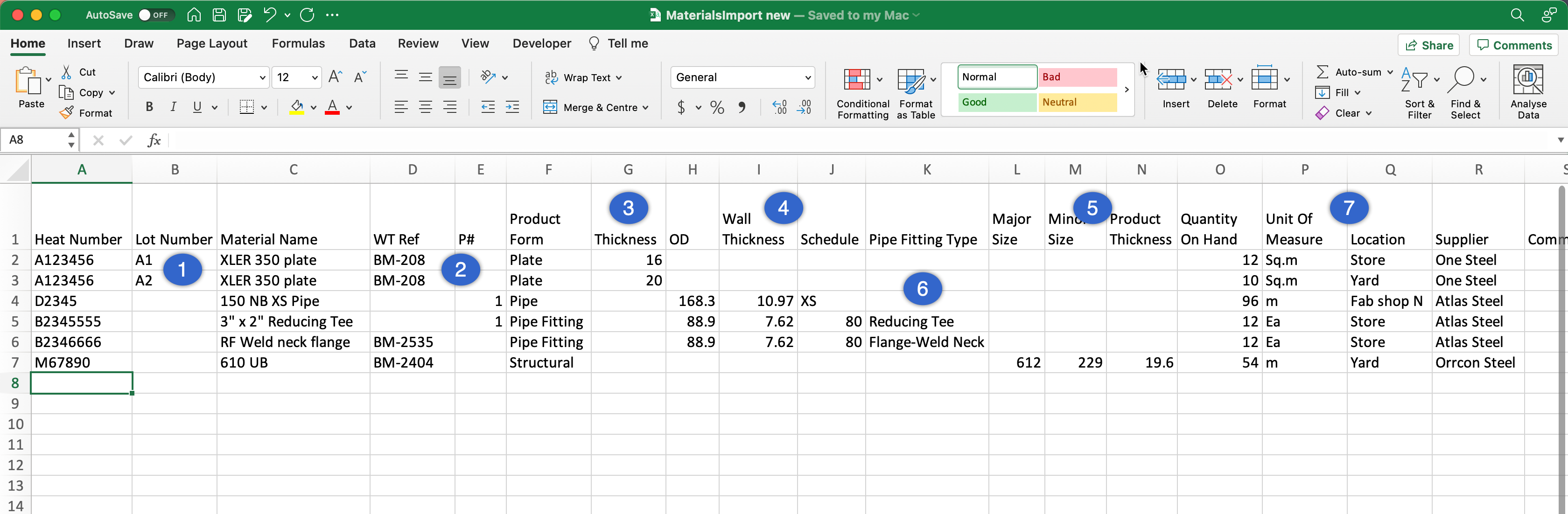

Enter data in the template file

Import materials list

1. The heat number must be unique. If you have more than one material with the same heat number, enter a lot number;

2. You may enter the WeldTrace base metal reference (check this article to learn more about base metals in WeldTrace) or enter the P number;

3. For product forms plate, sheet, rod, box tube and other, enter the thickness value in column G;

4. For product forms pipe and tube, enter the OD, wall thickness and schedule in columns H, I and J;

5. For product form structural, enter the major size, minor size and thickness values in columns L, M and N;

6. If the product form is pipe fitting, enter the pipe fitting type value in column K;

7. The last 5 columns are optional and are for managing your inventory;

Upload the csv file

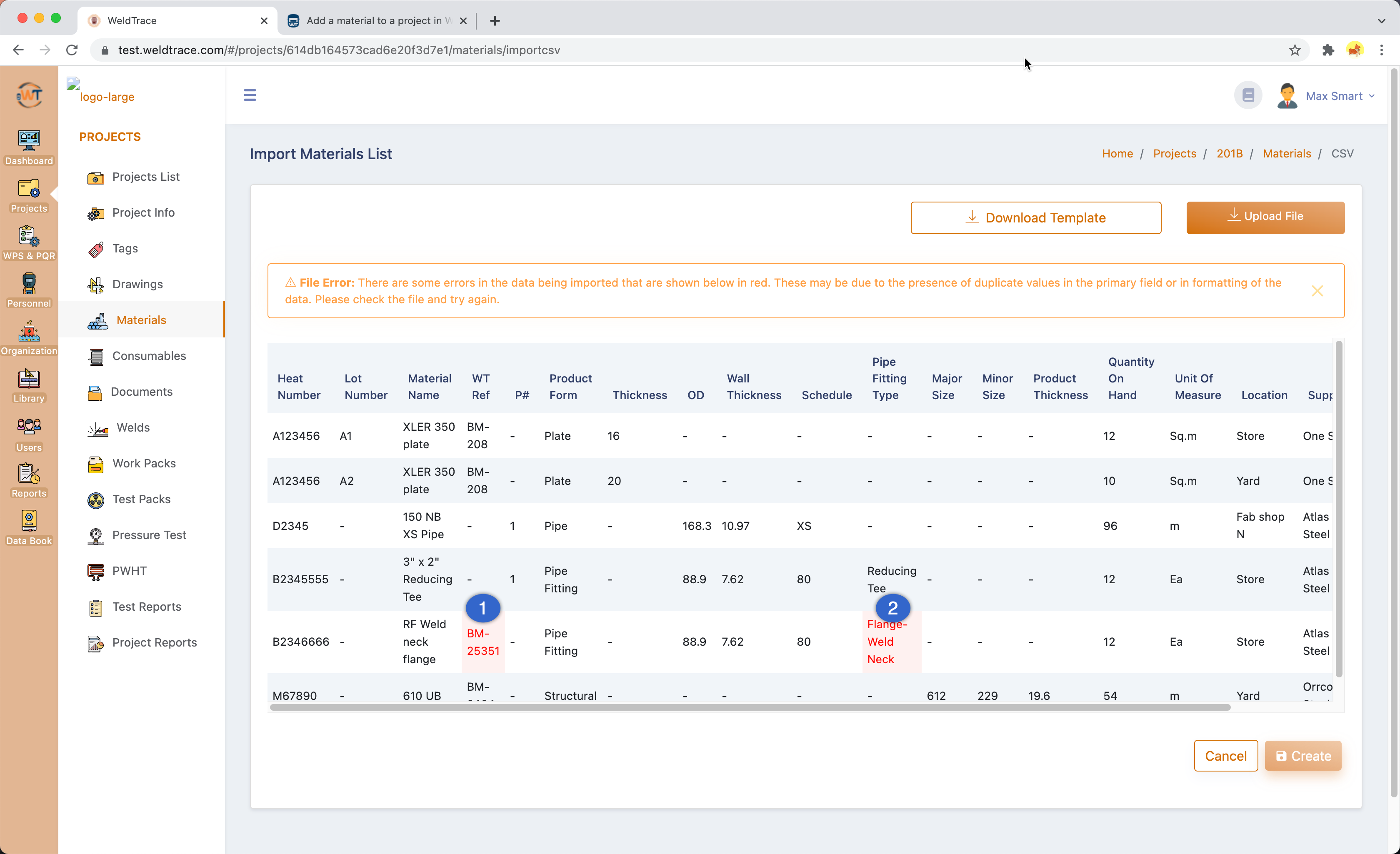

CSV file with errors

WeldTrace will read the csv file and evaluate the data and if there are any errors a warning message as shown in the screenshot above will appear.  Data that is not acceptable or with some errors will be in red text and highlighted in a red background.

1. The error here is for a base metal reference that is invalid;

2. This field has an extra space. Please use the exact terms including hyphens;

Product Form	Pipe Fitting Type	Unit of Measure
Plate	Pipe-Nipple	For pipe fitting & other
Pipe	Tee	Ea
Pipe Fitting	Reducing Tee
Tube	Elbow	For linear measures
Box Tube	Concentric Reducer	mm
Structural	Eccentric Reducer	m
Sheet	Flange-Weld Neck	ft
Rod	Flange-Slip on
Other	Flange-RTJ Ring Joint	For plate & sheet
	Flange-Socket Weld	Sq. m
	Flange-Blind	Sq. ft
	Welded Valve
	O-Let-WOL
	O-Let-EOL
	O-Let-TOL
	O-Let-SOL
	Cap
	Swage
	Coupling
	Plug
	Union
	Bushing
	Threaded Fitting
	Other Pipe Fitting

Go to the next section: Consumables
