Revise a Work Pack

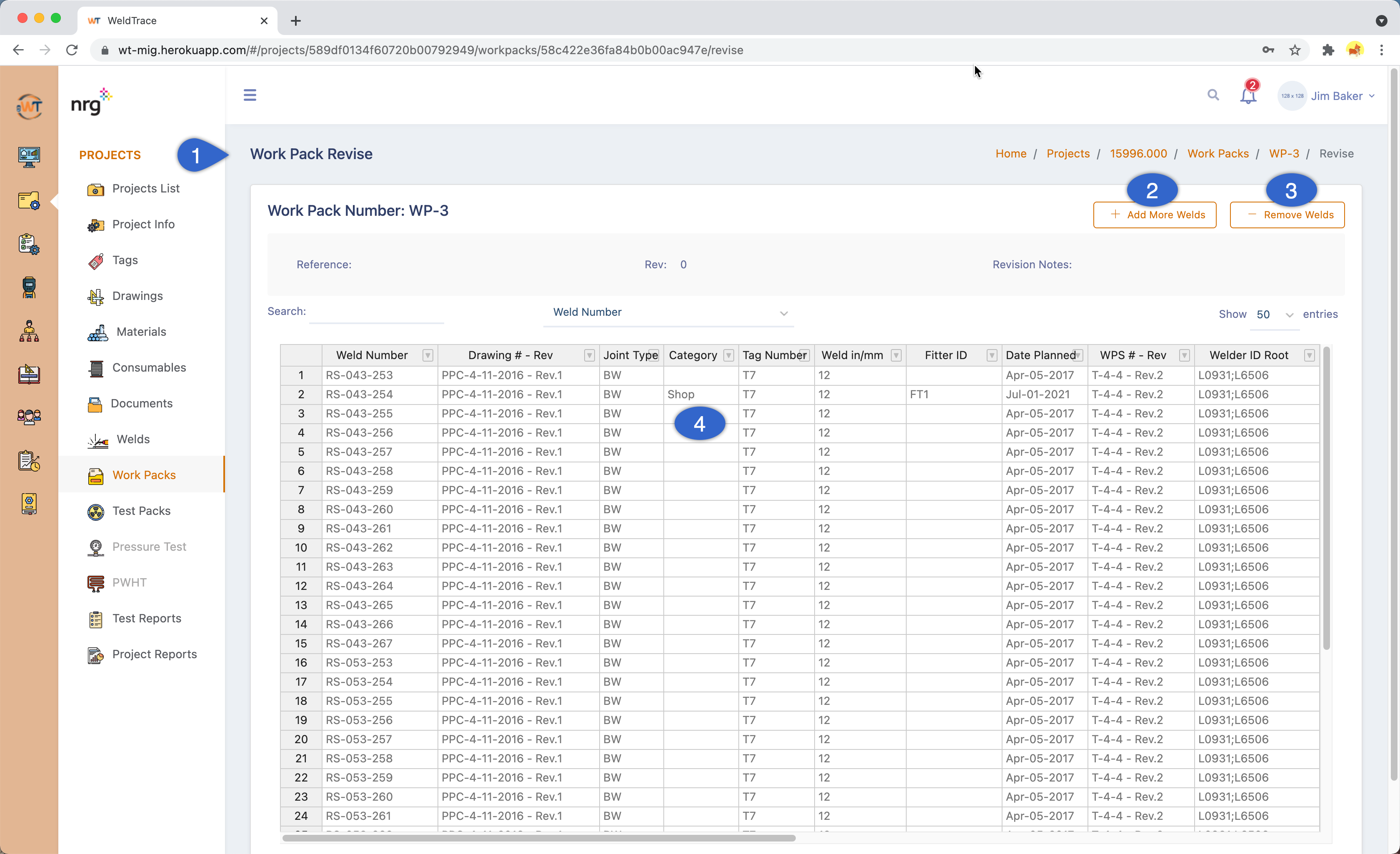

When you click on the "Revise" button in the work pack detail page, you will be taken to this page:
Revise a Work Pack
  1. Revise the work pack;
  2. Click here to open another window from where you can search and select welds to add to this work pack;
  3. Click here to open another window from where you can remove welds in this pack;
  4. You cannot edit welds in this area. They are listed for information purposes only;

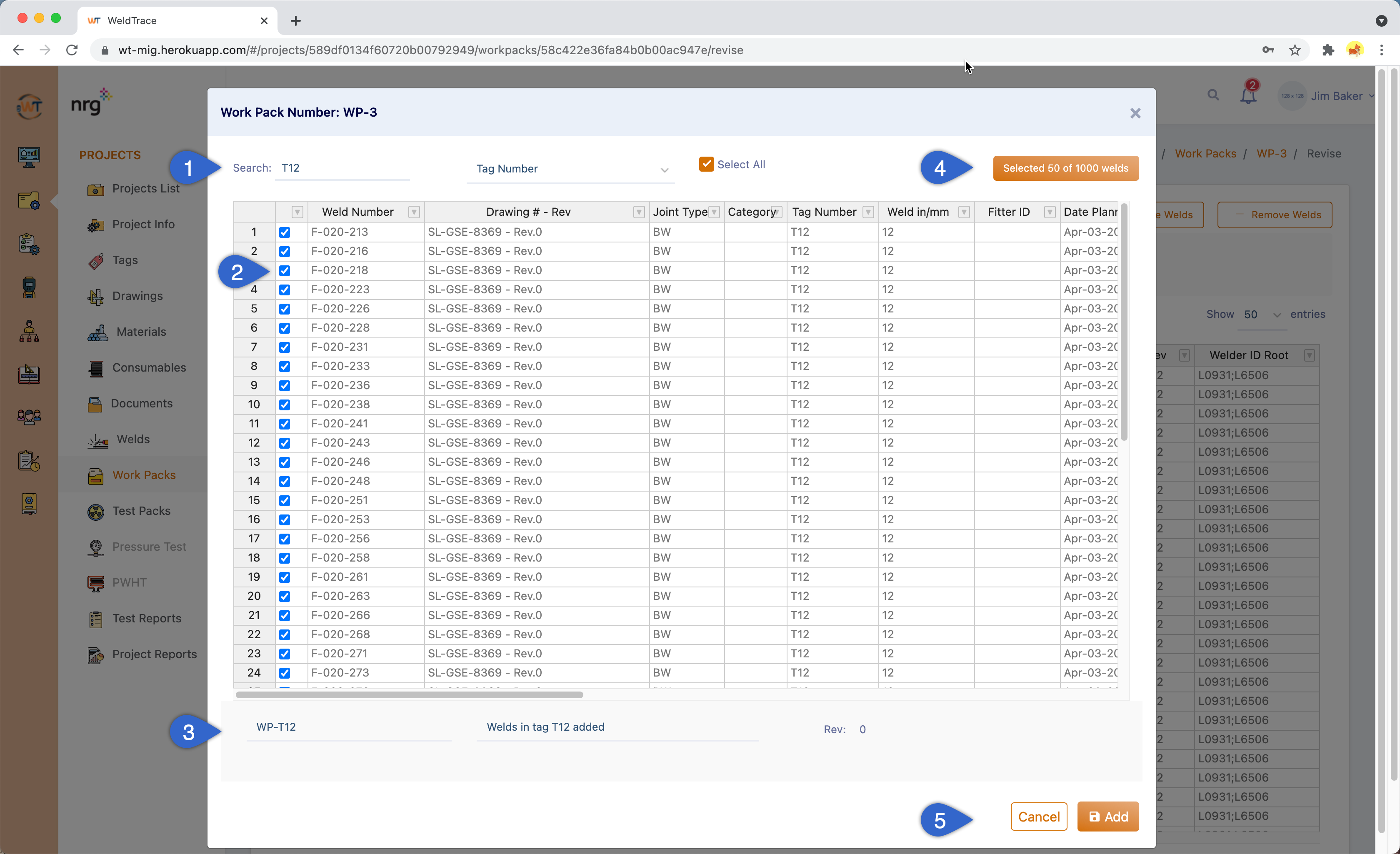

Add Welds to a Work Pack

Add welds to a work pack
  1. Use the search and filter the welds;
  2. You may check specific welds or select all the welds. Please note that the data in this page cannot be edited;
  3. Give a reference for the revision;
  4. The number of welds already selected can be viewed by clicking this button;
  5. Click save to add welds to the work pack. A work pack can have a maximum of 1000 welds;
A weld can only be in one work pack. So, this list will show the welds that are not in any work pack

Remove Welds from a Work Pack

Remove welds from a work pack
  1. This table will only list the welds that are already added to this pack. Use the search and filter the welds;
  2. You may check specific welds or select all the welds. Please note that the data in this page cannot be edited;
  3. Give a reference for the revision;
  4. The number of welds already selected can be viewed by clicking this button;
  5. Click save to remove the welds from this work pack;
Welds removed from a work pack will be available to be added to other work packs
