Create code compliant welder qualifications to API 1104 in WeldTrace

API 1104 Welder Qualifications

In WeldTrace you can write code compliant welder qualifications to API 1104 for single and multiple qualifications, welding operator qualification, repair welder and in service welder qualifications. Here's a step by step guide to creating a code compliant welder qualification certificate (WPQ/WQTR) for the single welder qualification in the API 1104 template. Other types of welder qualifications to API 1104 differ in the workflow, but they are similar in design and approach.

Step 1 - Select the standard & unit

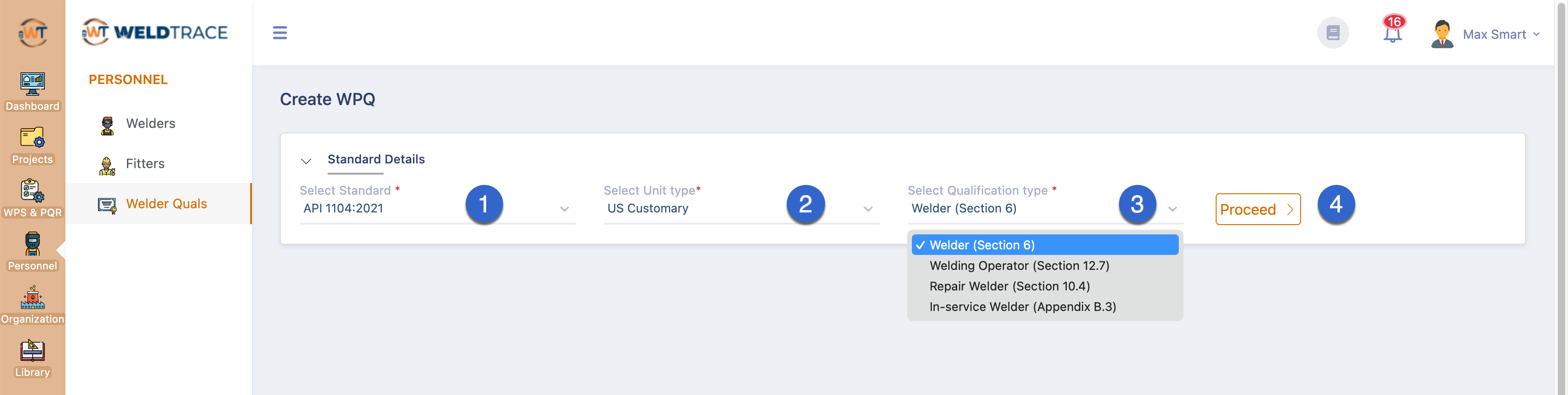

Create API 1104 welder qualification - step 1
  1. Go to the "Welder Quals" menu under "Personnel";
  2. Select the standard;
  3. Select the unit (metric/US customary);
  4. Select the welder qualification type;
  5. Click here to continue;

Step 2 - Pick a welder and enter the qualification details

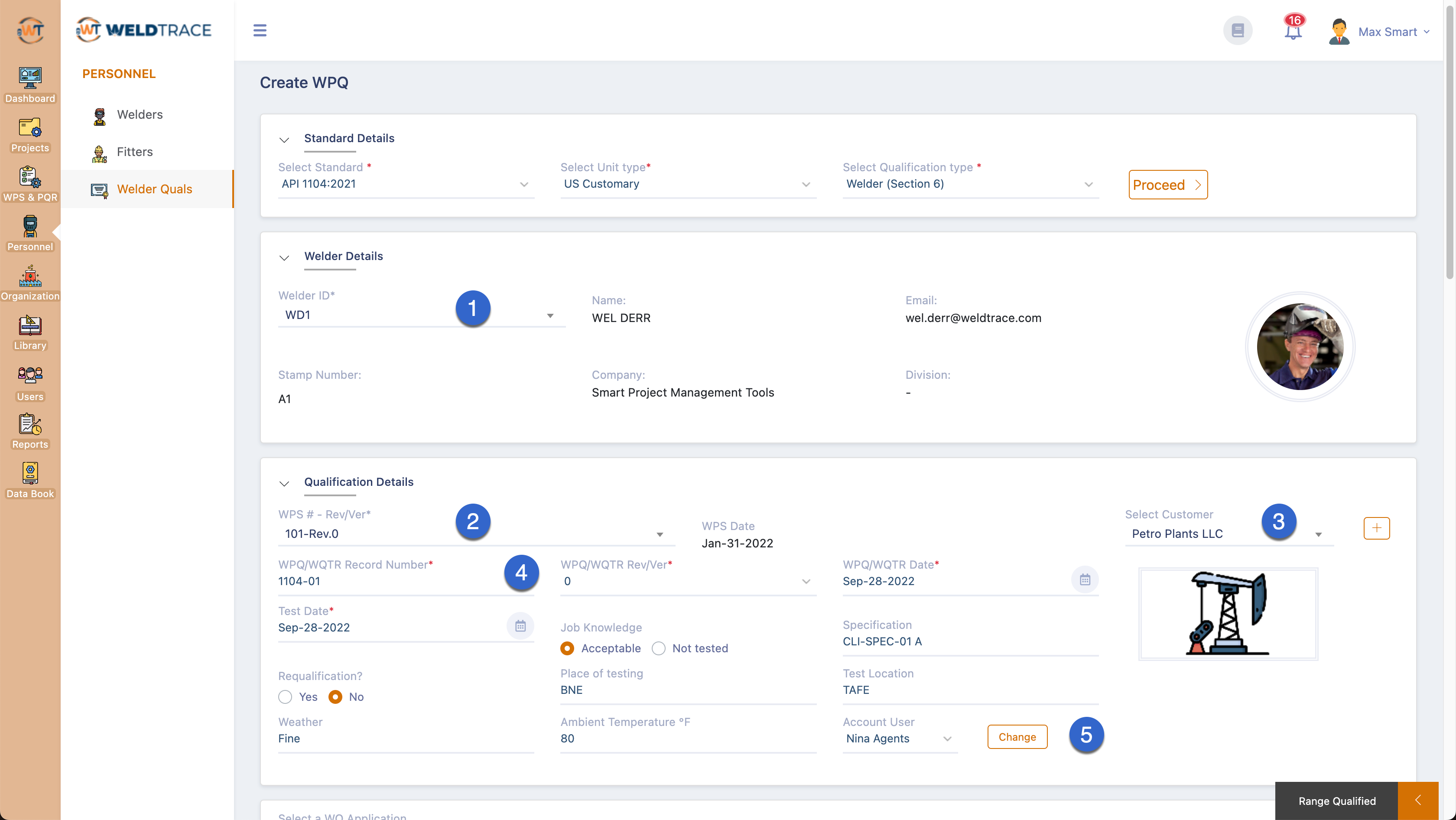

Create API 1104 welder qualification - step 2
  1. Select a welder ID. The name, email, company and photograph will be displayed for the selected welder;
  2. Pick the WPS. Only the WPS that are in the WPS (all) menu (BYO WPS and WPS created in WeldTrace and approved) will be listed here;
  3. Select the customer (only the customers who are already entered in the Organization -> Customers section will be displayed. You may also create a customer through the "+" button shown next to the drop down field;
  4. Enter a number for the WPQ/WQTR, pick a revision and the date and fill in the other fields;
  5. Select a user or enter a name for the witness;
NOTES:
  1. If the welder is previously qualified to the standard/unit combination selected in step 1, you will see a "Clone" button above the "Qualification Details" section. You can pick any of the previous WPQs (the dropdown box will list the designations of the WPQs) and press the clone button to copy all the data from the other qualification, which you may then edit;
  2. If there are other WPQs for the standard/unit combination selected in steps 1 & 2, you will see a "Replicate" button below the "Qualification Details" section.  You can pick any of the previous WPQs (the dropdown box will list the designations of the WPQs) and press the replicate button to copy the data from the other qualification (from this point down i.e. starting from the joint details), which you may then edit;
  3. The “Clone” and “Replicate” functions will only transfer the data from WPQs that are in “Awarded” state. Any of the “Failed” or “In progress” WPQ designations will not be shown for selection;

Step 3 - Select the joint details and base metal

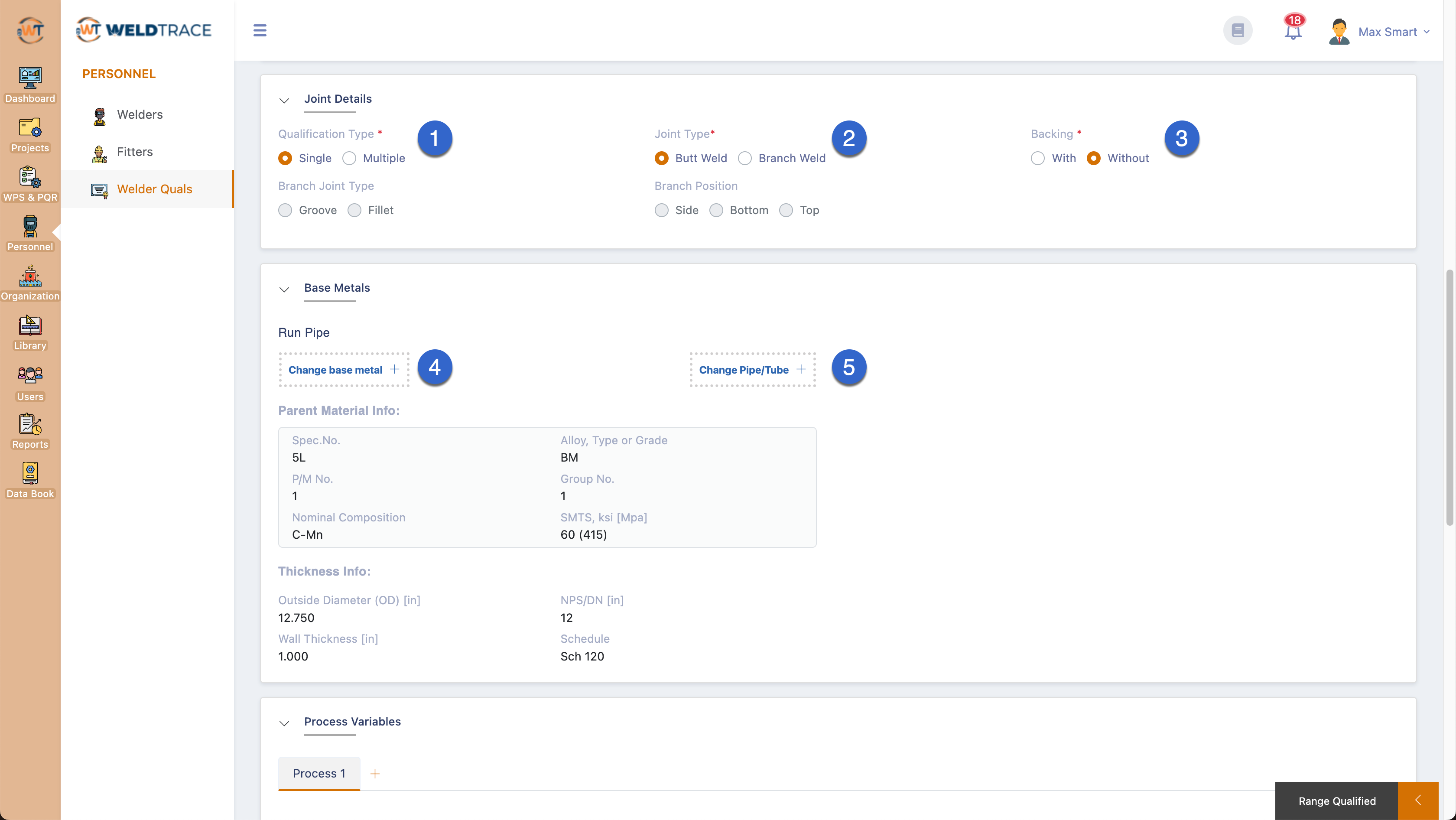

Create API 1104 welder qualification - step 3
  1. Select the qualification type;
  2. Select the joint type;
  3. For single welder qualification some of these fields will be enabled based on the joint type. For multiple welder qualification, these fields will not be applicable (automatically considered for run pipe and branch pipe);
  4. Click to pick a base metal;
  5. Click to select a pipe size;

Step 4 - Enter the Process Variables

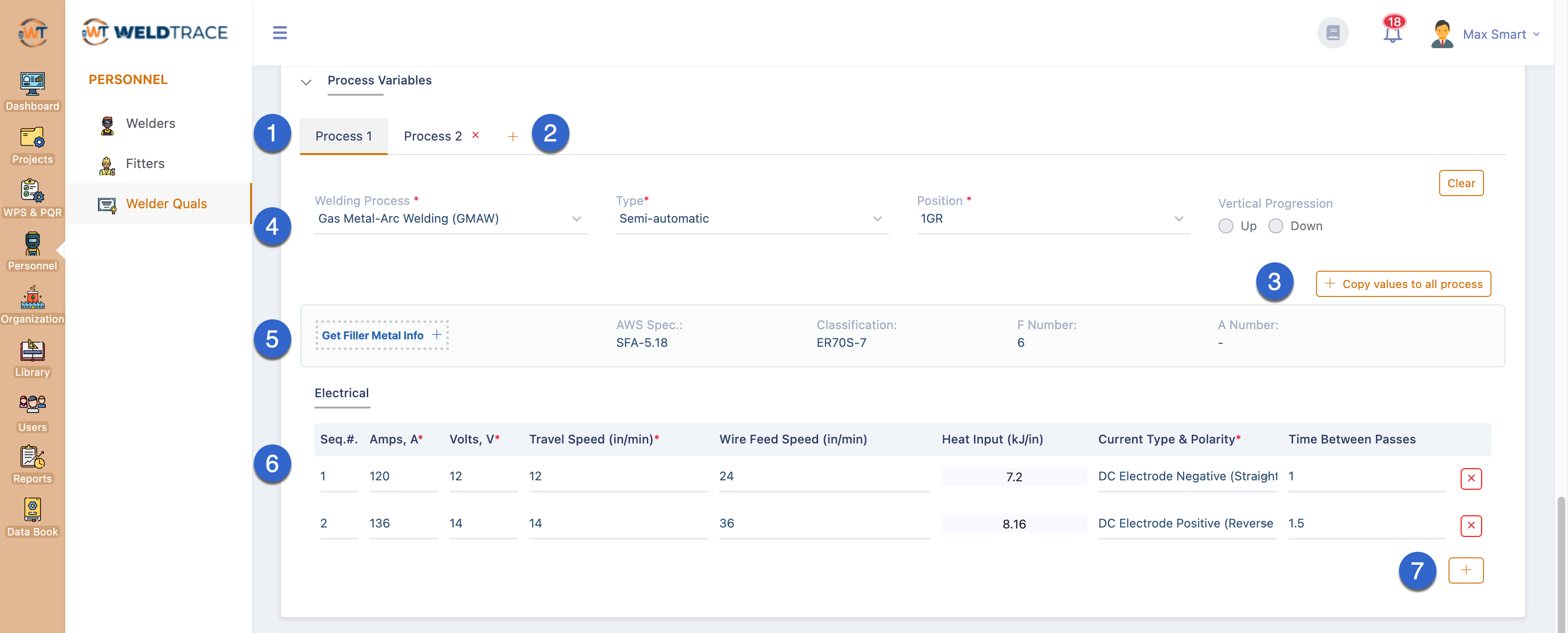

Create API 1104 welder qualification - step 4
  1. The tab to enter the variables for process 1. The current tab will be highlighted;
  2. You may click on the "+" button and add another process (maximum 3 processes per WPQ);
  3. You may click this button to populate the values to the other processes (if multiple processes are used);
  4. Pick the welding process and type and other variables;
  5. Pick a filler metal;
  6. Enter the electrical variables;
  7. You may click this button to add another row;

Step 5 - Enter Test Results

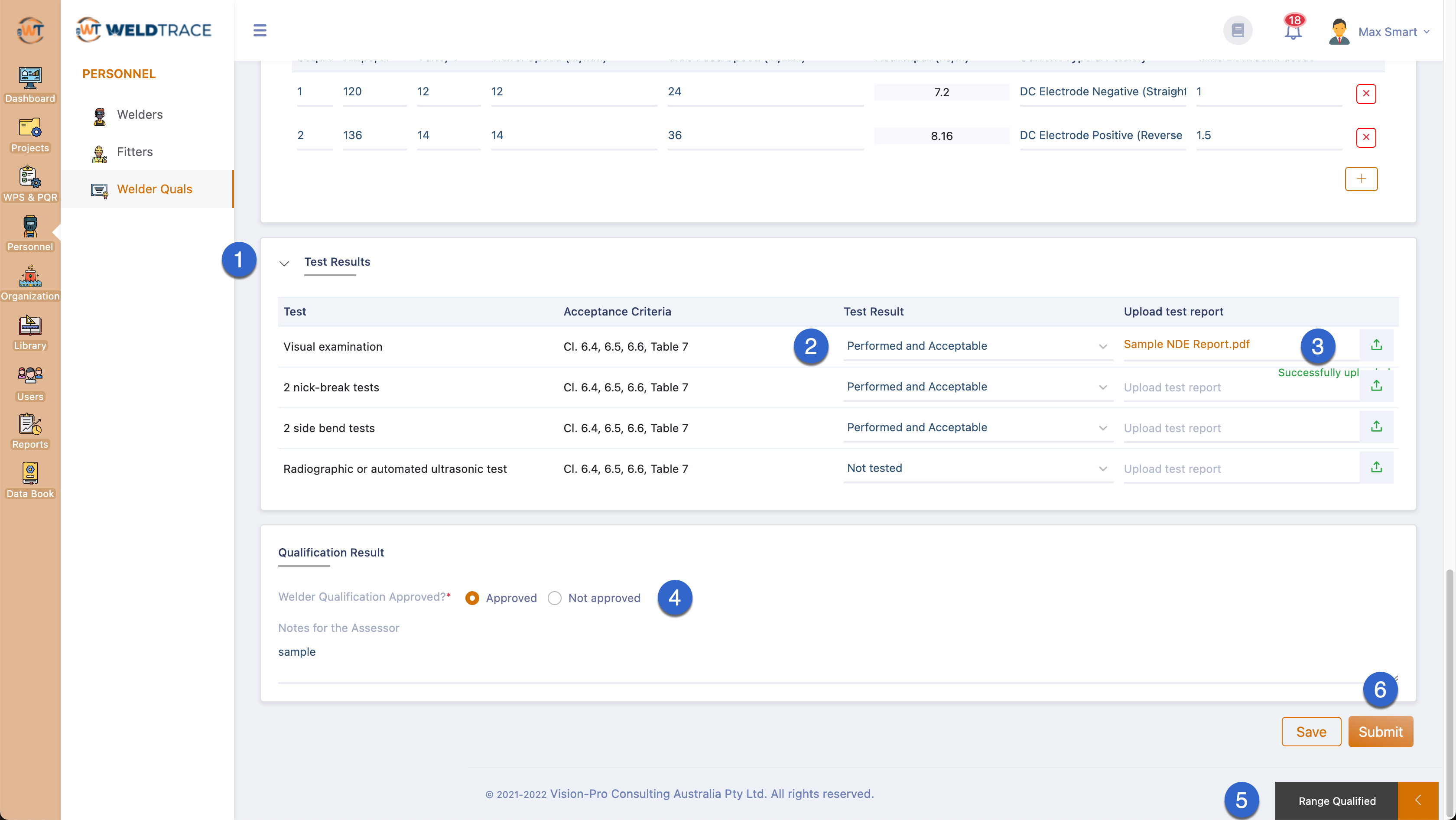

Create API 1104 welder qualification - step 5
  1. Enter the test results in this section. The test methods displayed here will be as per the code;
  2. Select “Performed and Acceptable” if the test result is acceptable. If “Not Acceptable” is selected for the required tests, the WPQ status will default to “Not Approved”;
  3. You may upload the test report (must be a PDF file);
  4. Select the outcome of the welder qualification test. If “Not approved” is selected, the outcome of the process will be a failed WPQ (this can be changed in the approval process - the next step in the workflow). You may leave some notes for the person who will approve the welder qualification;
  5. You can click on this button to slide out the range qualified values table at any time;
  6. Click on the Submit button to save and push the WPQ to the next stage of the workflow;
NOTE: The test methods listed will include both required and optional tests. For example, in the screenshot shown above, the radiographic or automated ultrasonic tests may be substituted for side bend and nick break tests and you may select “Not Tested” for either the side bend and nick break tests or the radiographic or automated ultrasonic tests and this will not result in the WPQ being failed;

Range Qualified Values

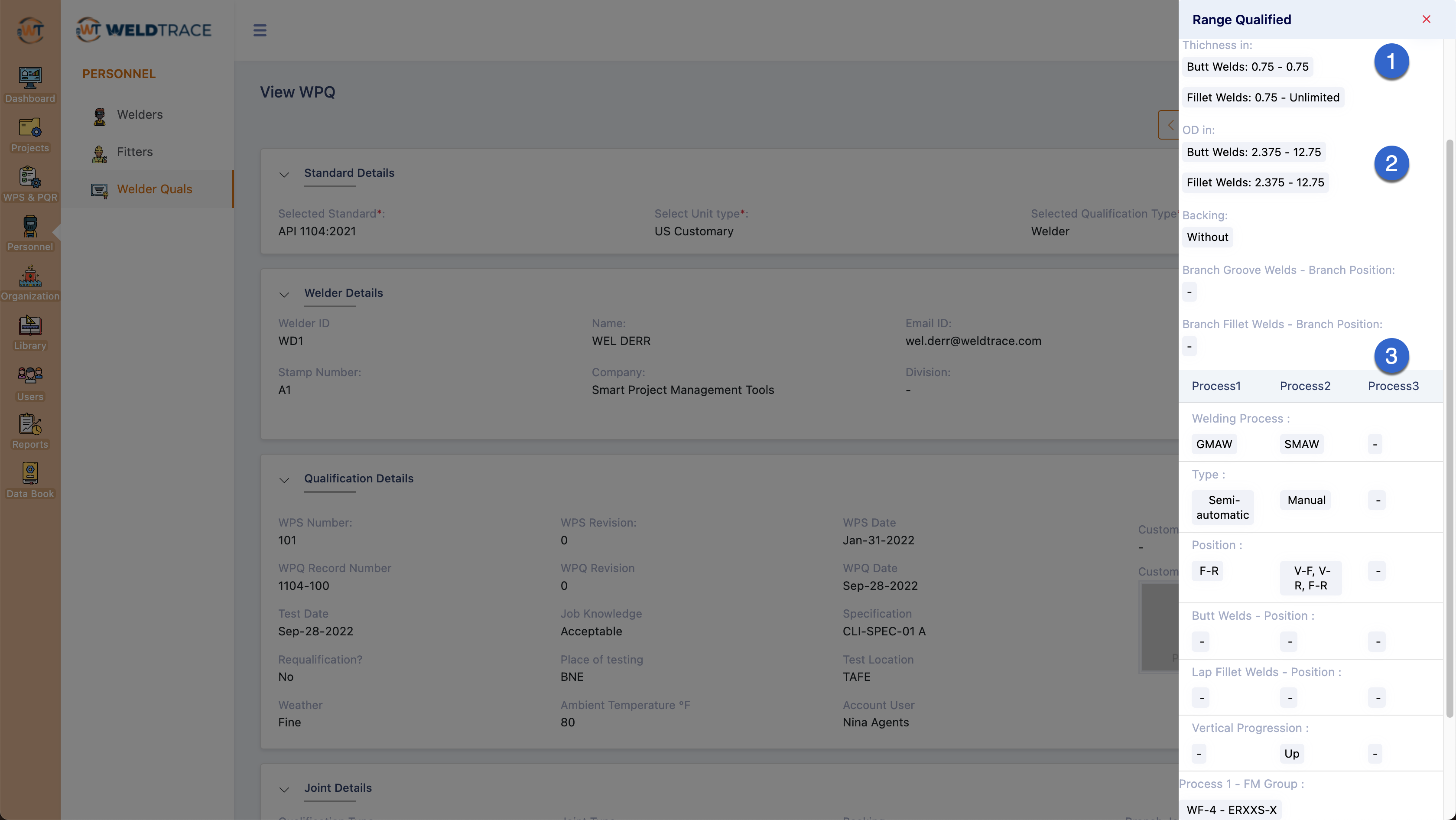

API 1104 welder qualification - range qualified values
  1. The range qualified values will be displayed in this table;
  2. You may see the values listed by joint type;
  3. The values shown in the columns will be for the processes displayed here;

Status of the Welder Qualification

Create API 1104 welder qualification - step 6
  1. The WPQ will be listed in the Welder Qualifications list. You may click on the WPQ number to view and edit the data;
  2. Click on this icon to view the WPQ PDF file;
  3. "Awaiting approval" will be displayed in the status column;
  4. If you click on the accordion button (>), you will see the designation and other details;
Step 7 - Approve the Welder Qualification

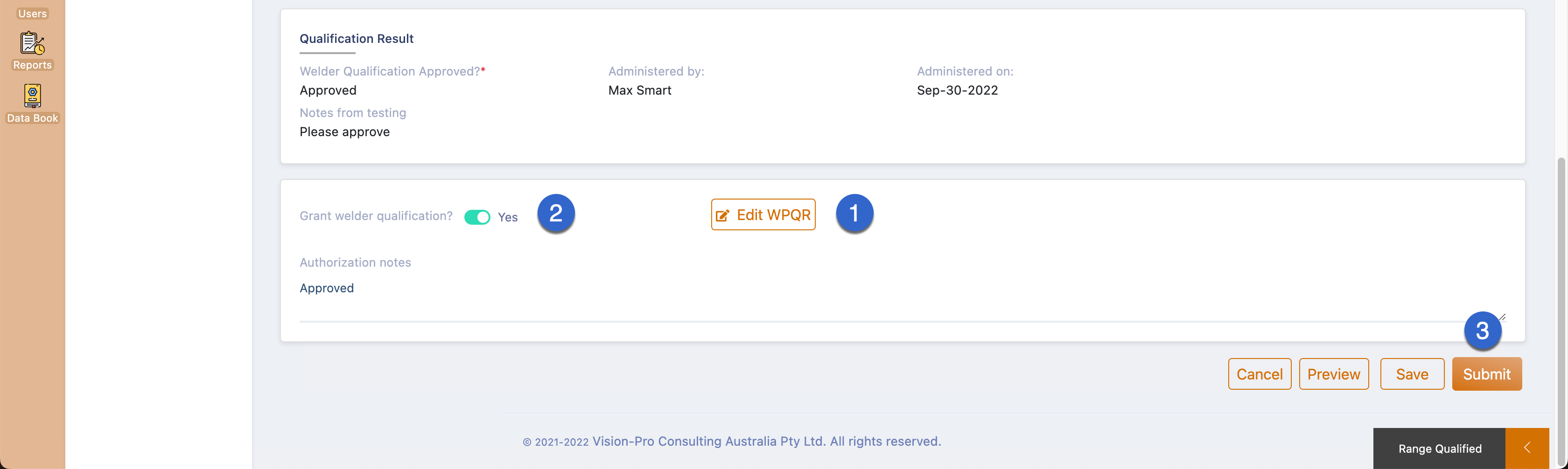

Create API 1104 welder qualification - approval stage
The welder qualification workflow is in two stages. Someone who has the privilege to access the menu can create a WPQ and submit it for approval. The same user or another user can approve and grant the qualification. Both these users' stamps and signatures will appear in the WPQ certificate.

The screenshot above is for viewing the welder qualification form that is showing the status "Awaiting Approval."
  1. You may edit the WPQ by clicking on this button, which will launch the WPQ edit process and all the fields will become editable. Please note that if the WPQ is edited it needs to be submitted and then approved. The WPQ certificate will then bear the stamp and signature of the user who edits the WPQ and not the user who first created the WPQ;
  2. Select “Yes” to grant the welder qualification. If the welder has failed any of the required tests, this will be set to “No”. You may leave some approval comments;
  3. Click on “Submit” button to complete the process and generate the WPQ;
