Create a pressure test pack in WeldTrace

Create a Pressure Test Pack

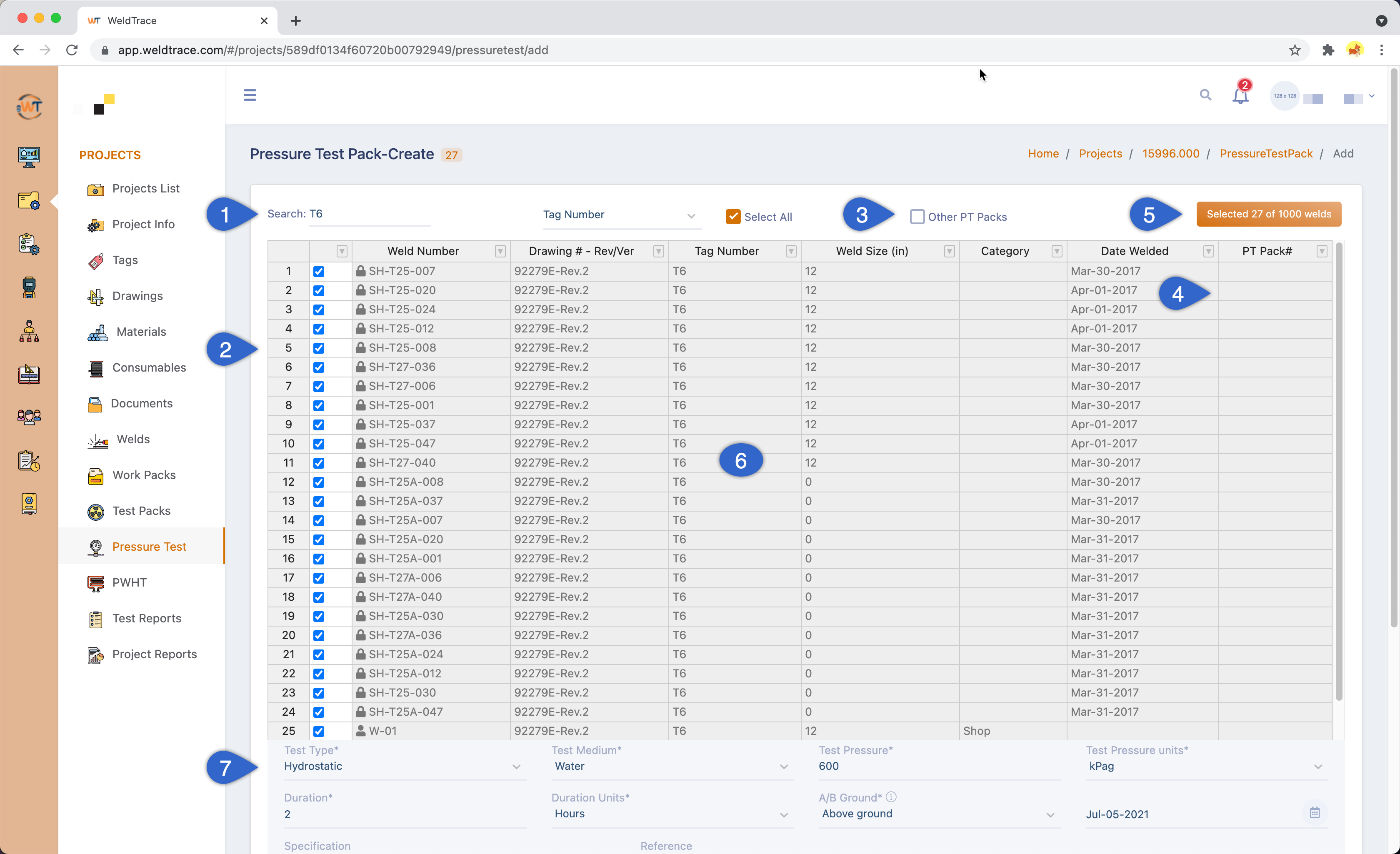

Create a pressure test pack

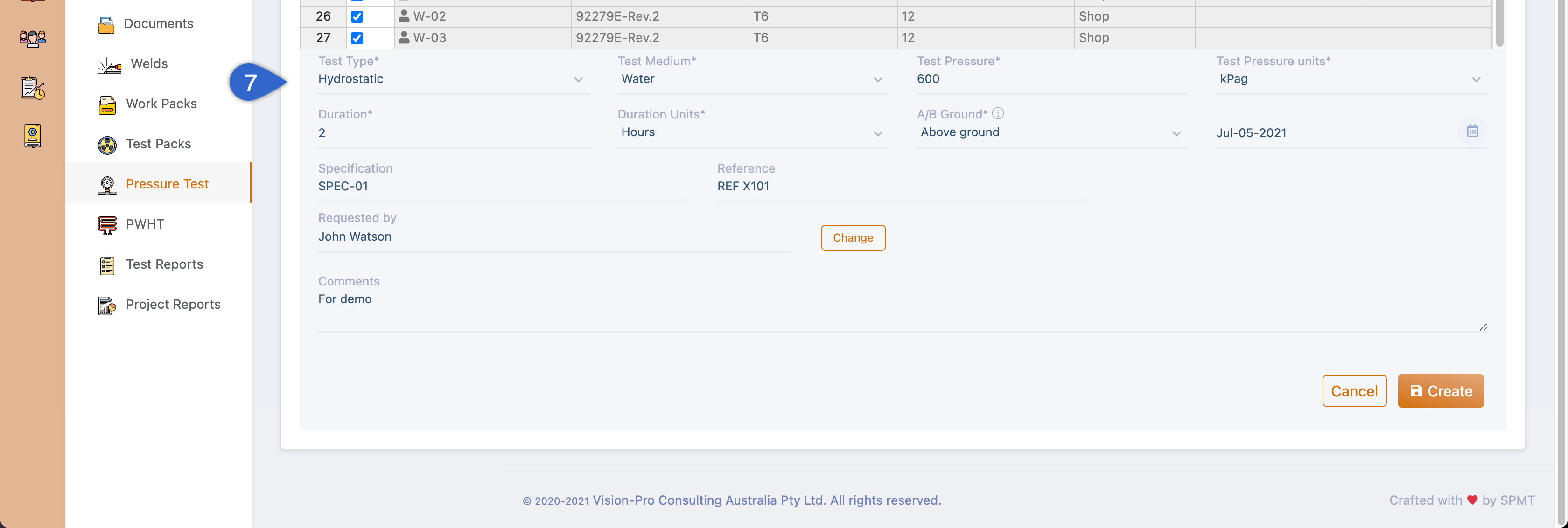

Create a pressure test pack - test request details
  1. Use the search criteria and filter the welds;
  2. You may check specific welds or select all the welds;
  3. Check this box if you would like the welds in the other pressure test packs to be listed;
  4. If the "Other PT Packs" check box is checked, you will see the PT pack number in this column;
  5. The welds that are selected can be viewed by clicking this button (welds that are not selected will be hidden);
  6. Data in this area cannot be edited in this page;
  7. Enter the details of the test requested here
    1. Test Type (Hydrostatic/Pneumatic);
    2. Test Medium (for hydrostatic tests - Water, Distilled Water, Glycol, Other (specify) and for pneumatic tests - Air, Nitrogen, Other (specify));
    3. Test Pressure;
    4. Test Pressure units (kPag, barg (for Metric) and psig (for US Cust));
    5. Duration;
    6. Duration units (minutes or hours);
    7. Above/Below Ground;
    8. Date (planned date for the test);
    9. Specification (text field);
    10. Reference (text field);
    11. Requested by (enter the name or pick a project user);
    12. Comments (text field);
Read the next article: Pressure Test Pack Details
