Pressure Test Pack Details

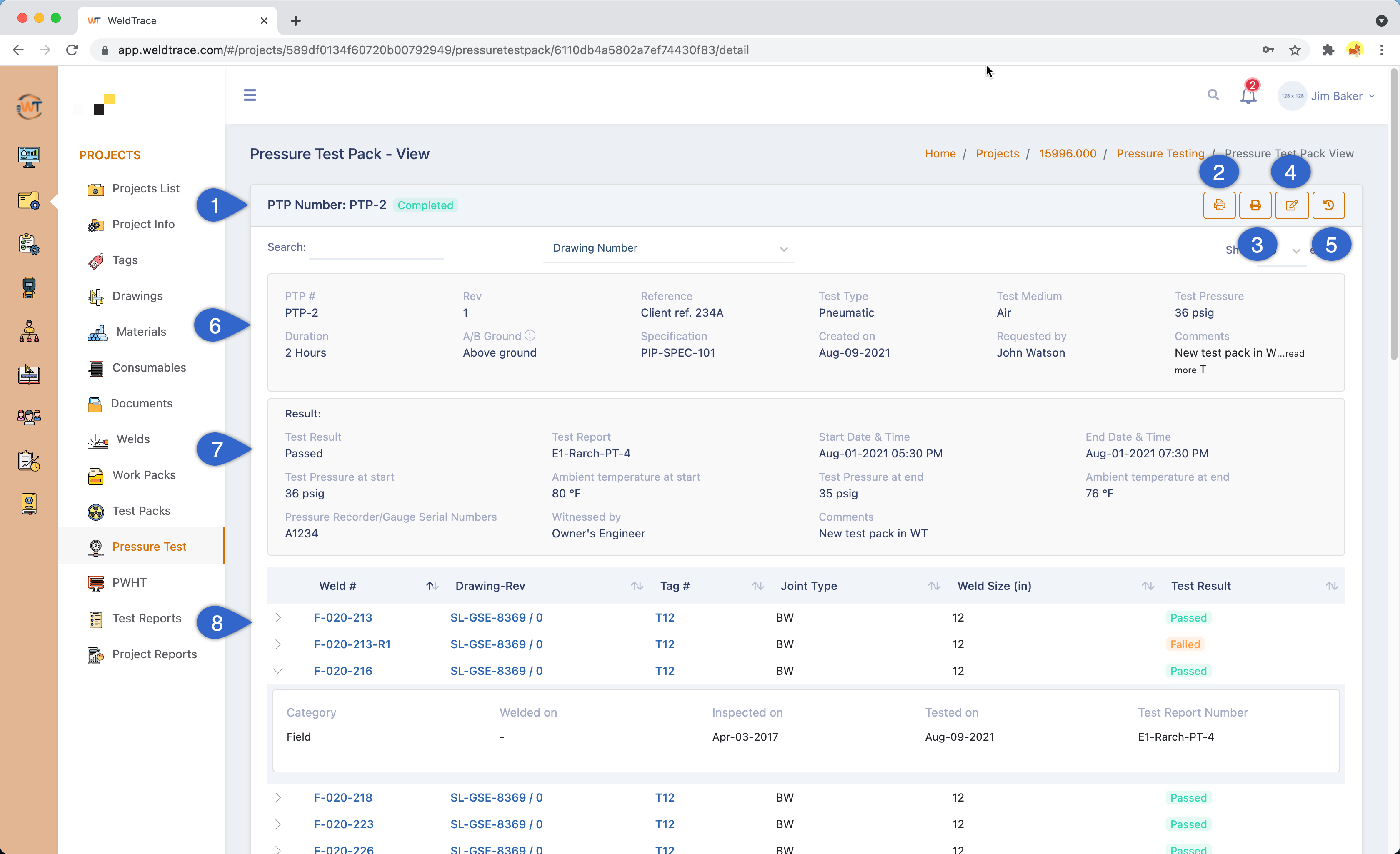

Pressure Test Pack details

Pressure Test Pack details - enter results

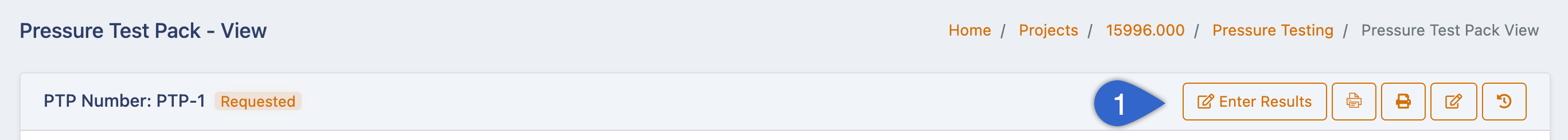

1. Pressure test pack number and the status. If the status is "Requested" you will see the "Enter Results" button here to open the interface to enter the test pack results. If the status is "Completed" the "Enter Results" button will be hidden;

2. Print the pressure test pack;

3. Print all the weld maps for the drawings included in the PT pack;

4. Revise the PT pack to change the request details, add or remove welds;

5. Revision history;

6. Pressure test request details;

7. Pressure test results;

8. The welds in the pack and the test results;


Enter Test Results

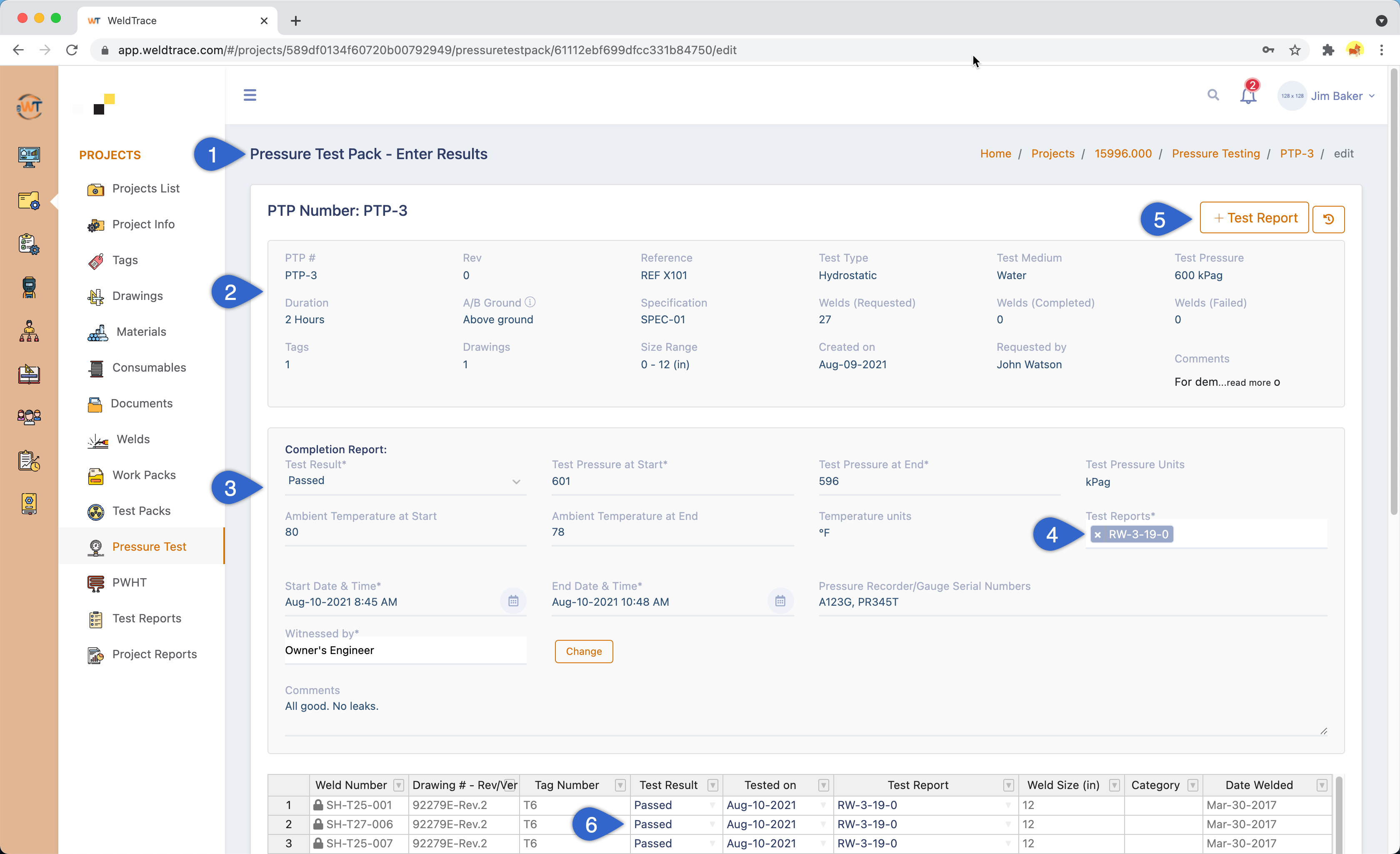

PT Pack - Enter Results

1. Pressure test pack number - Enter Results page;

2. Pressure test request details;
3. Enter the pressure test results;

4. Pick the test reports uploaded to the Test Reports section;

5. You may add a test report to the Test Reports section through this button, without leaving this page;
6. The test results added to the section above will be automatically copied to these 3 columns (Test Result, Tested on and the Test Report number). You may change the details for any of the welds. All the other cells will be locked;


1. If you mark a weld as failed, a repair weld will be created automatically based on your project settings;

2. Unlike in NDE or Test Packs, a weld can be included in more than one pressure test pack;


Read the next article: Revise a Pressure Test Pack
