Revise a Pressure Test Pack
You can revise a pressure test pack to edit some of the requested details or add welds to the pack and remove welds from the pack.

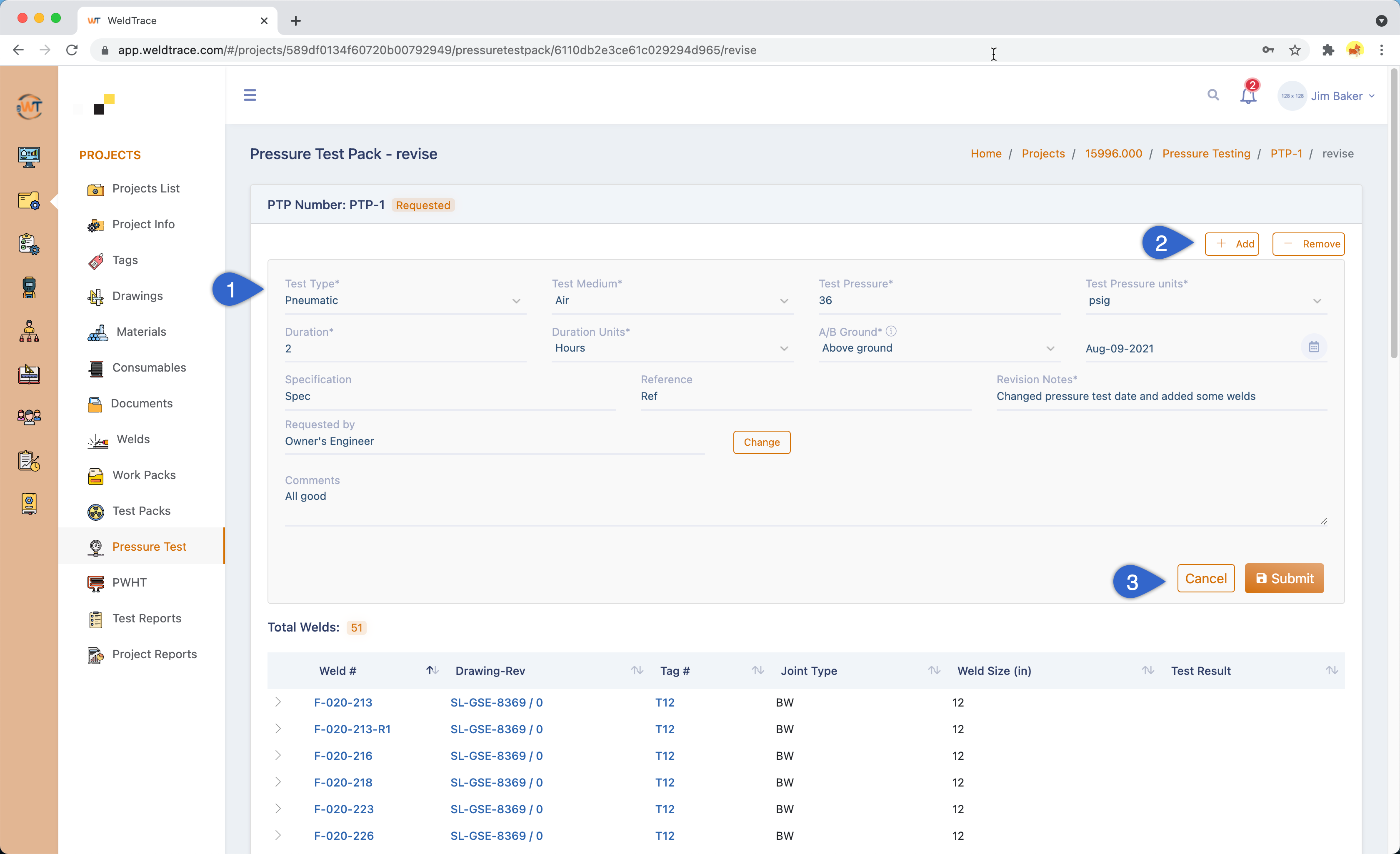

Click on the "Revise" button in the Pressure Test Pack details page and you will be taken to this page:
- Any of the requested details can be edited;
- Click here to open another window from where you can search and select welds to add to this PT pack or remove from this pack;
- Once you add or remove welds or edit the requested details, you need to click the submit button to complete the revision;

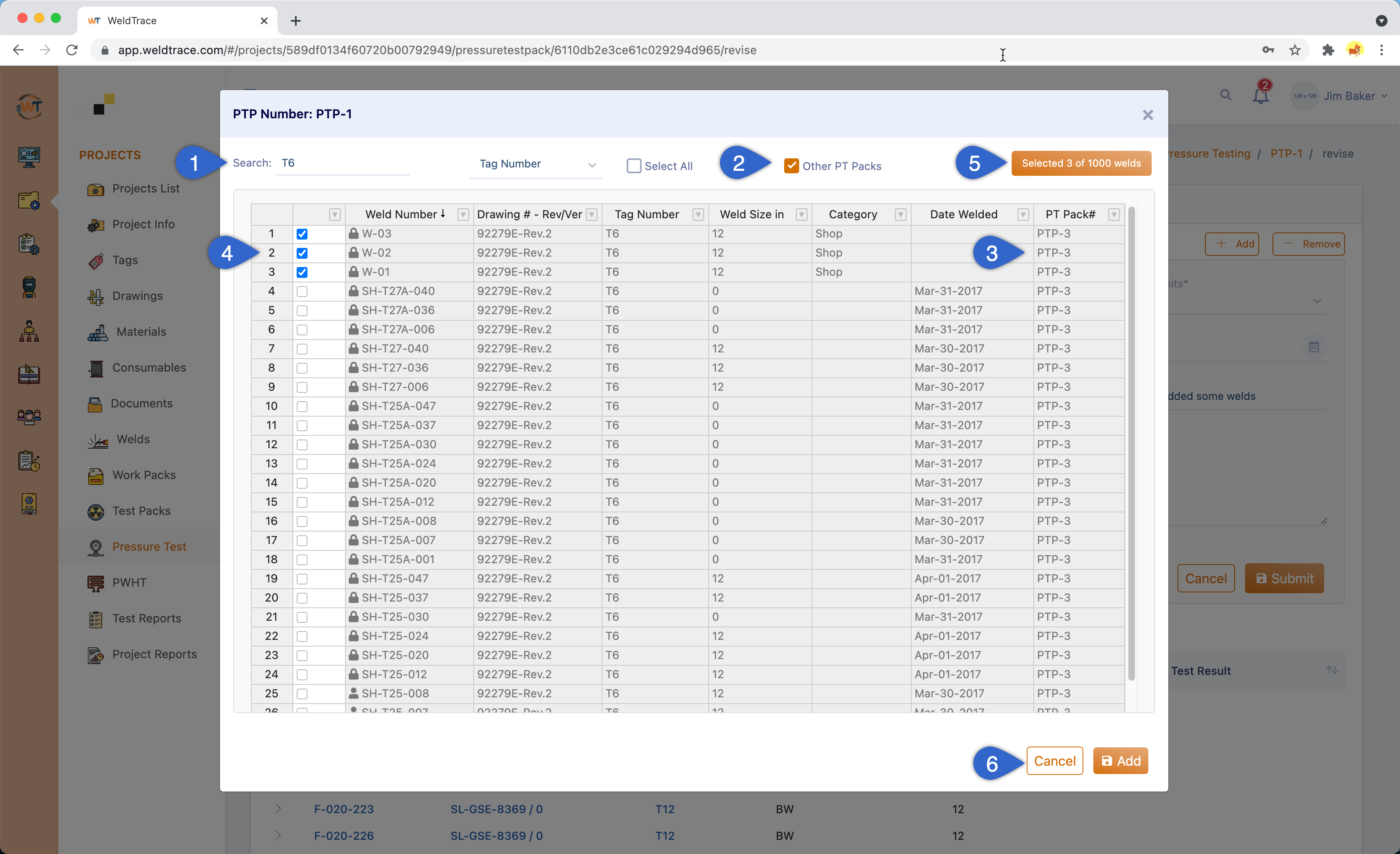

Add Welds to a Pressure Test Pack
- Use the search function and filter the welds;
- Check this box to include the welds that are added to other PT packs;
- If the checkbox for step 2 is checked, you will see the PT pack numbers displayed in this column;
- You may check specific welds or select all the welds. Please note that the data in this page cannot be edited;
- The number of welds selected can be filtered and viewed by clicking this button;
- Click "Add" to add welds to the PT pack and you will be returned to the previous page, where you need to click "Submit" to complete the revision. A PT pack can have a maximum of 1000 welds;
A weld can be in more than one pressure test pack

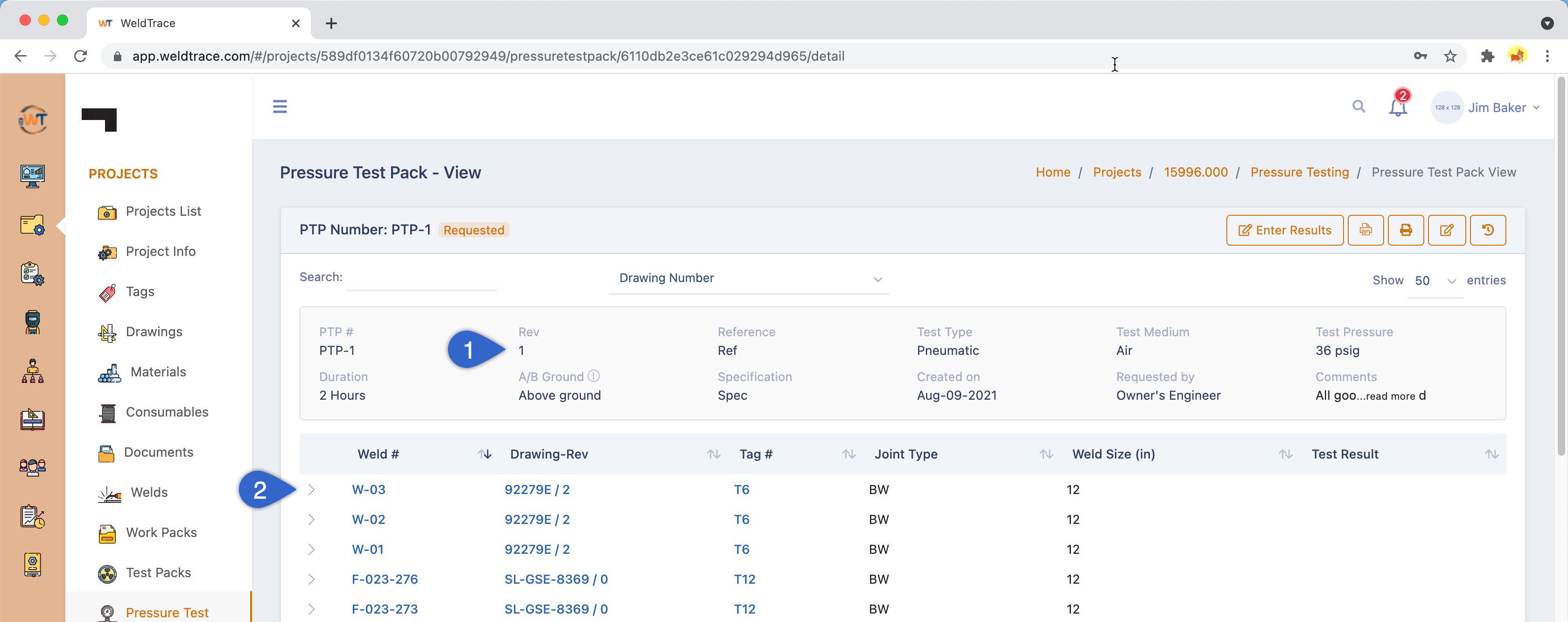

Revised Pressure Test Pack
- The revision number is shown here. The print PDF file for this PT pack will display the revision number and the details of the changes can be viewed in the revision history page;
- The welds that were added in the previous step are listed here;
Remove Welds from a Pressure Test Pack

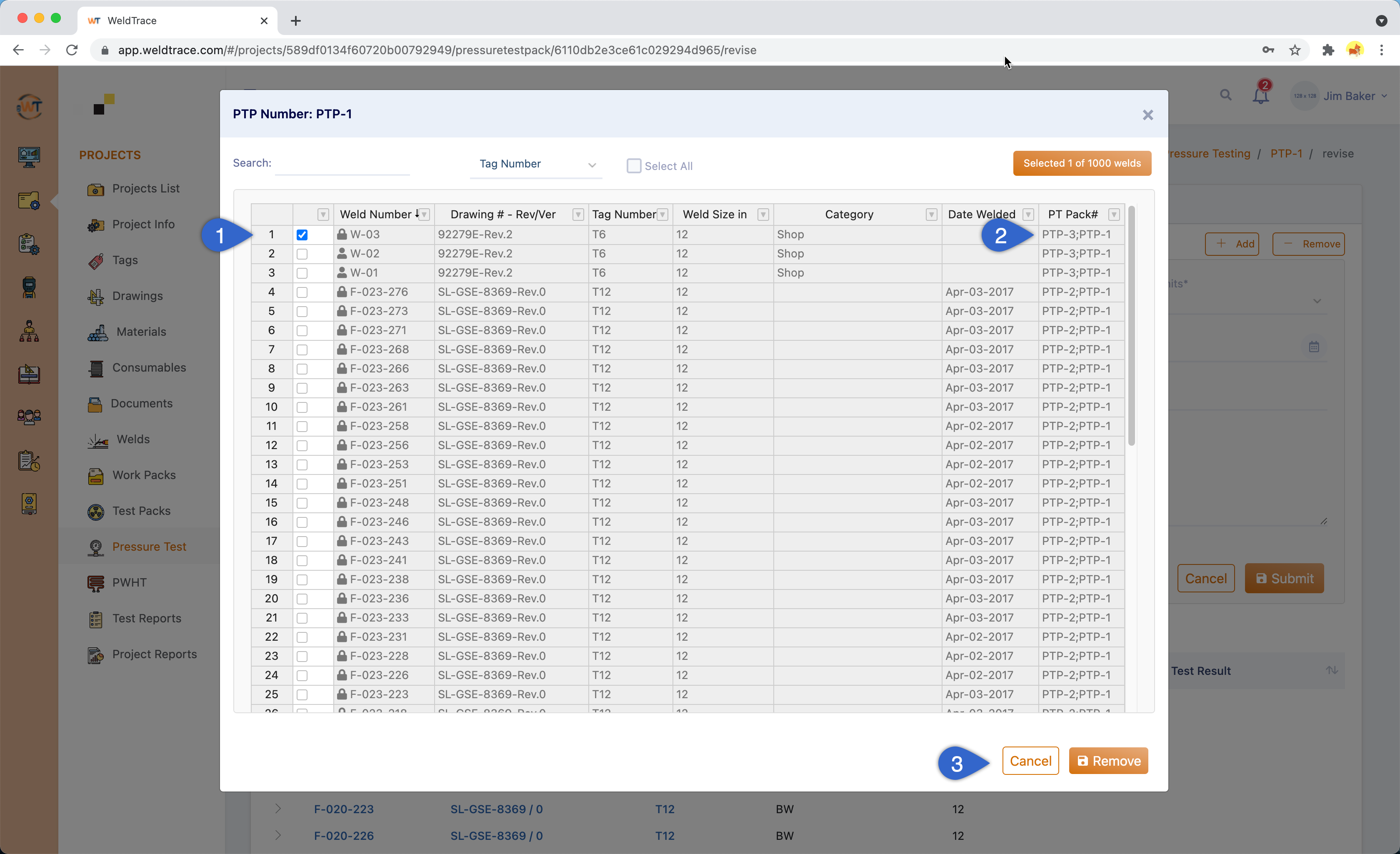

If you click on the "Remove" button in the PT Pack details page, you will be taken to this page:
- This table will only list the welds that are already added to this pack. You may check specific welds or select all the welds. Please note that at least one weld must remain in the pack;
- The PT packs the weld has been added to will be displayed here;
- Click on the remove button to remove the welds from this pack and you will be returned to the previous page, where you need to click "Submit" to complete the revision;

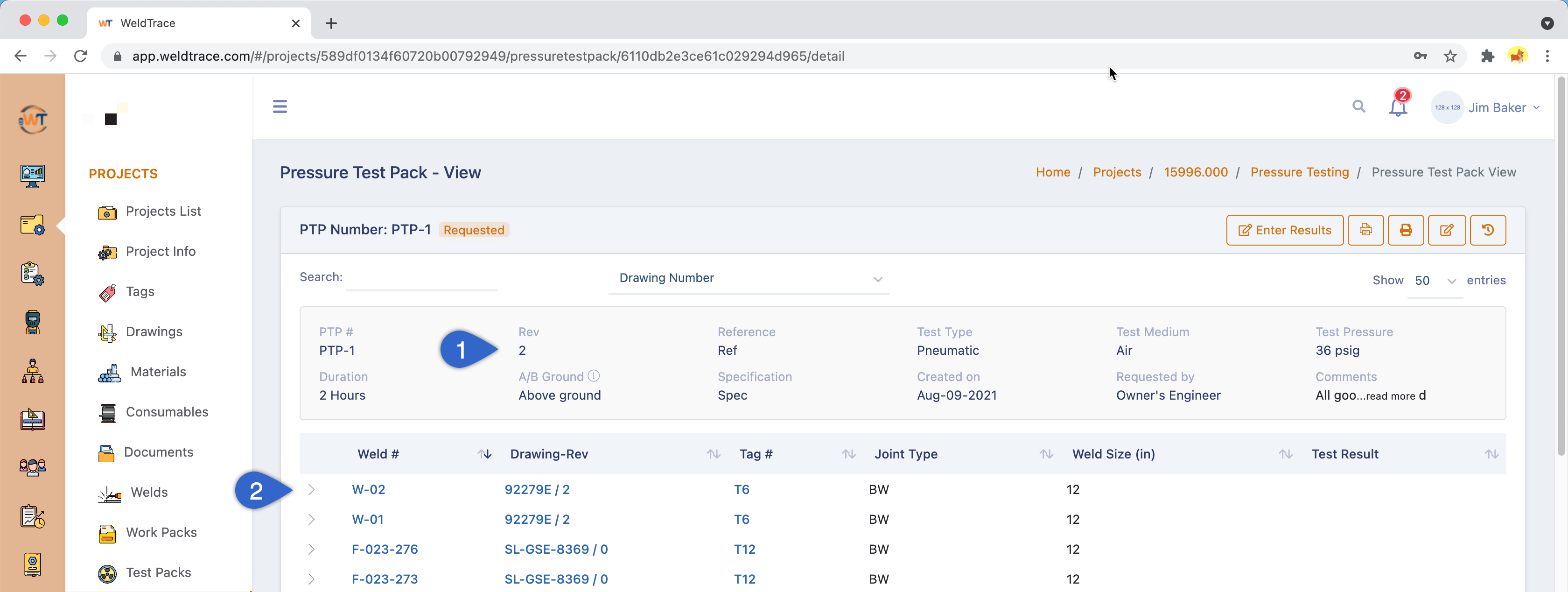

Revised Pressure Test Pack
- The revision number is shown here. The details of the changes can be viewed in the revision history page;
- The welds that were removed in the previous step will not be listed here;
Go to the next section: Post-weld Heat Treatment
