Generate QR code labels for welds in WeldTrace

QR Code Labels for Welds

You can generate QR code labels for welds and use the QR code scanner in the WeldTrace mobile app to navigate to a weld. This feature is available only for the accounts in the Pro plan.

Generating QR Code Labels for Welds in a Traveler

You can generate QR code labels when you generate a traveler or for all the welds in a work pack or for all the welds in a test pack.
Generate QR code labels for welds in a traveler

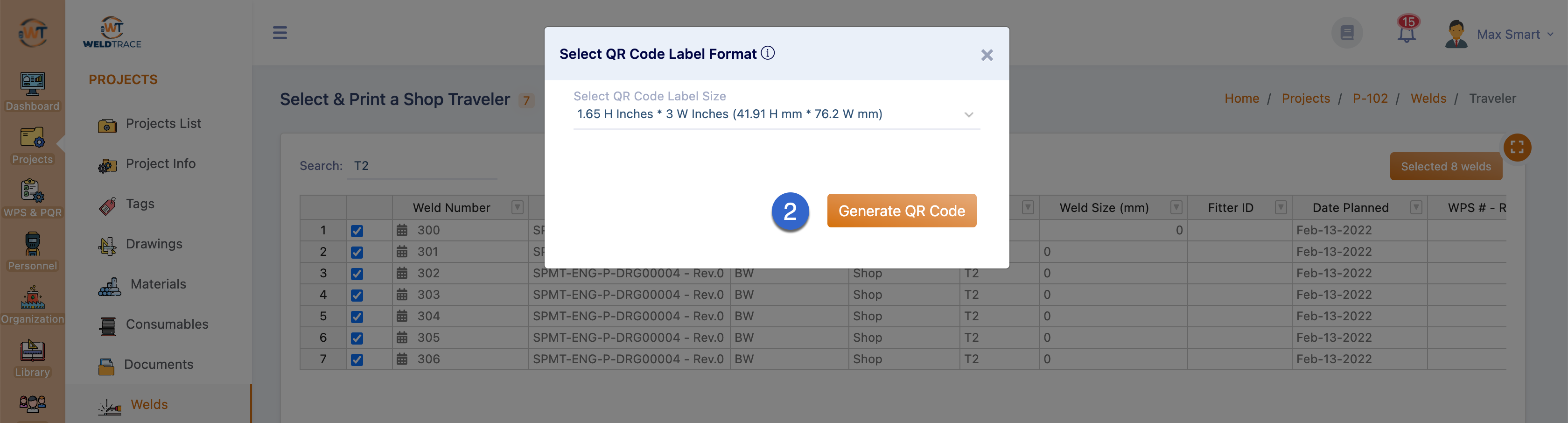

Select label size to print
  1. Once you select the welds for a traveler, click on this button to generate the QR code labels for the welds;
  2. Select the label size and click to generate the labels that you can print with a label printer;

Generating QR Code Labels for Welds in a Work Pack or a Test Pack

Similar to generating QR code labels for welds in a traveler, you can generate QR code labels for welds in a work pack or a test pack.

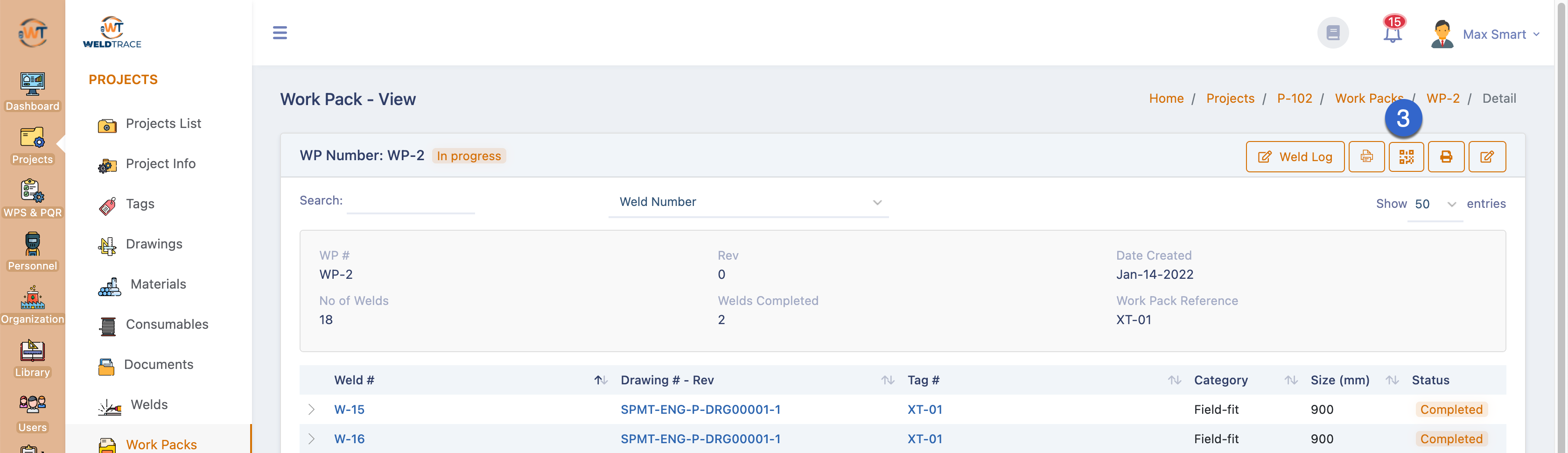

QR code labels for welds in a work pack

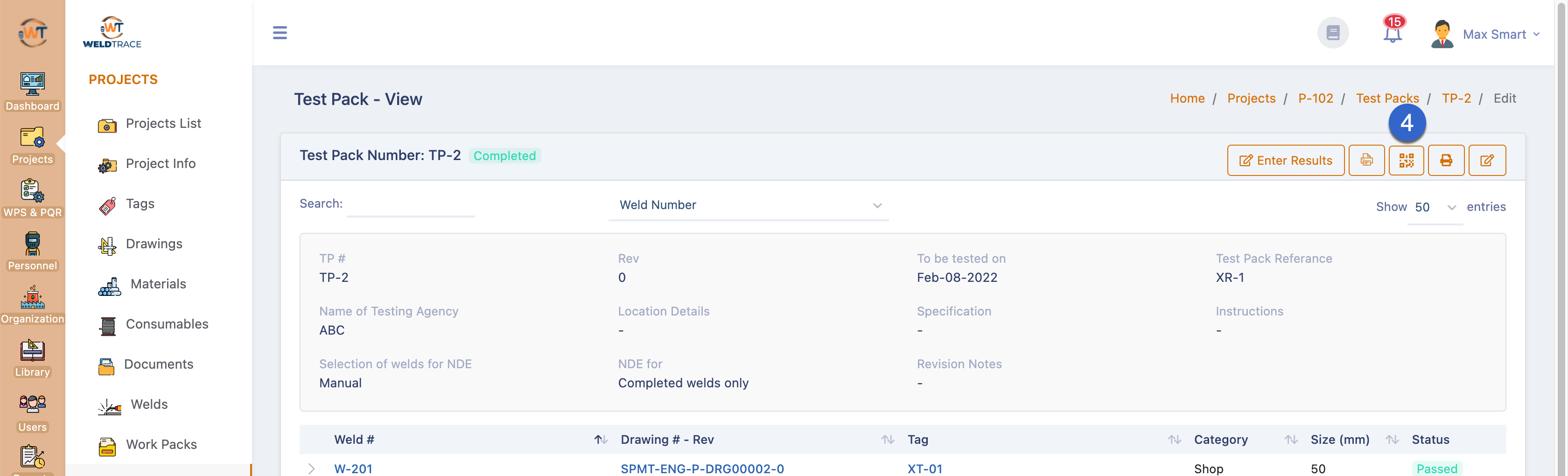

QR code labels for welds in a test pack
3.      Click this button to generate the QR code labels for welds in a work pack;
4.      Click this button to generate the QR code labels for welds in a test pack;

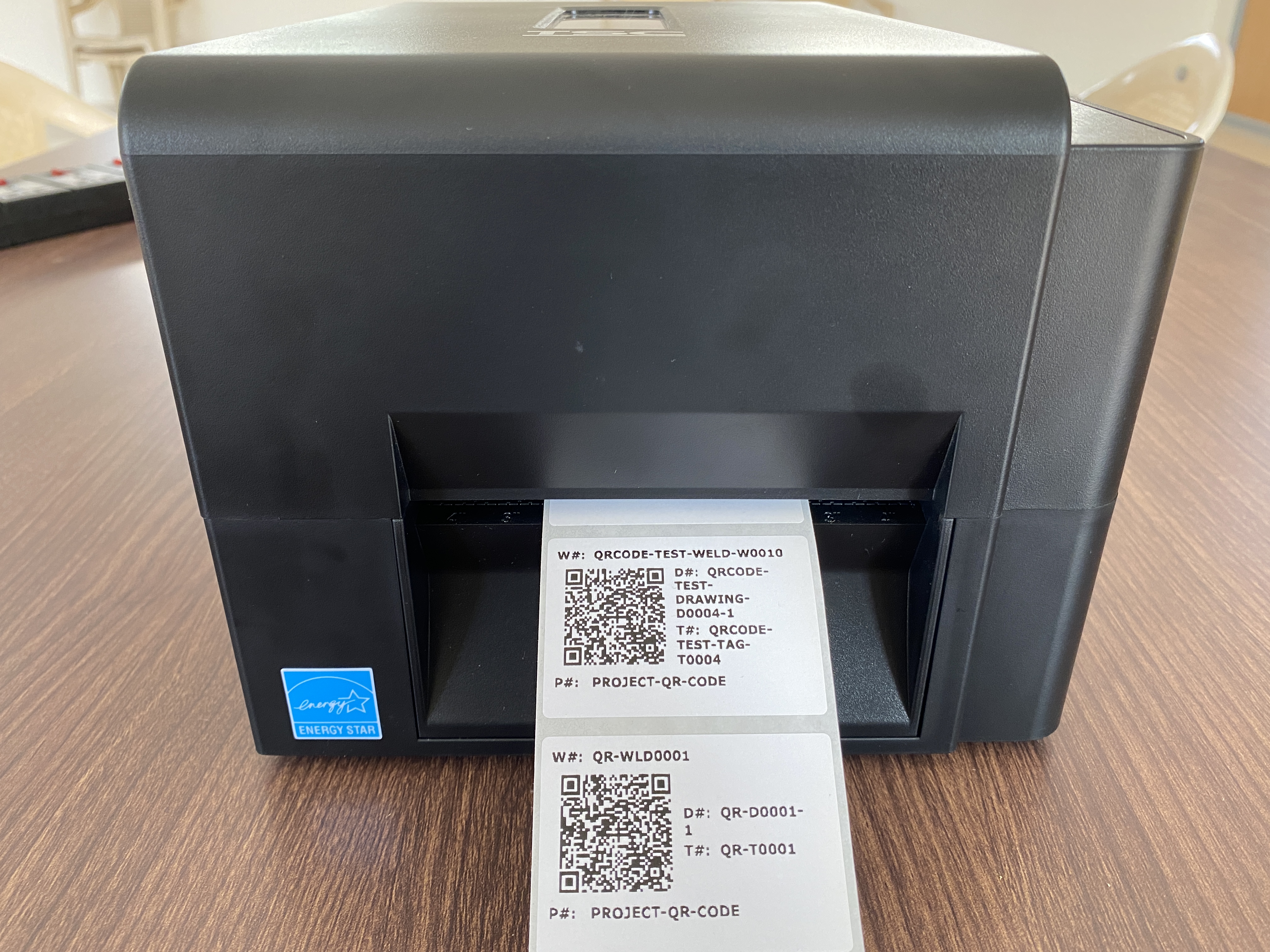

QR Code Labels for Welds

QR code labels

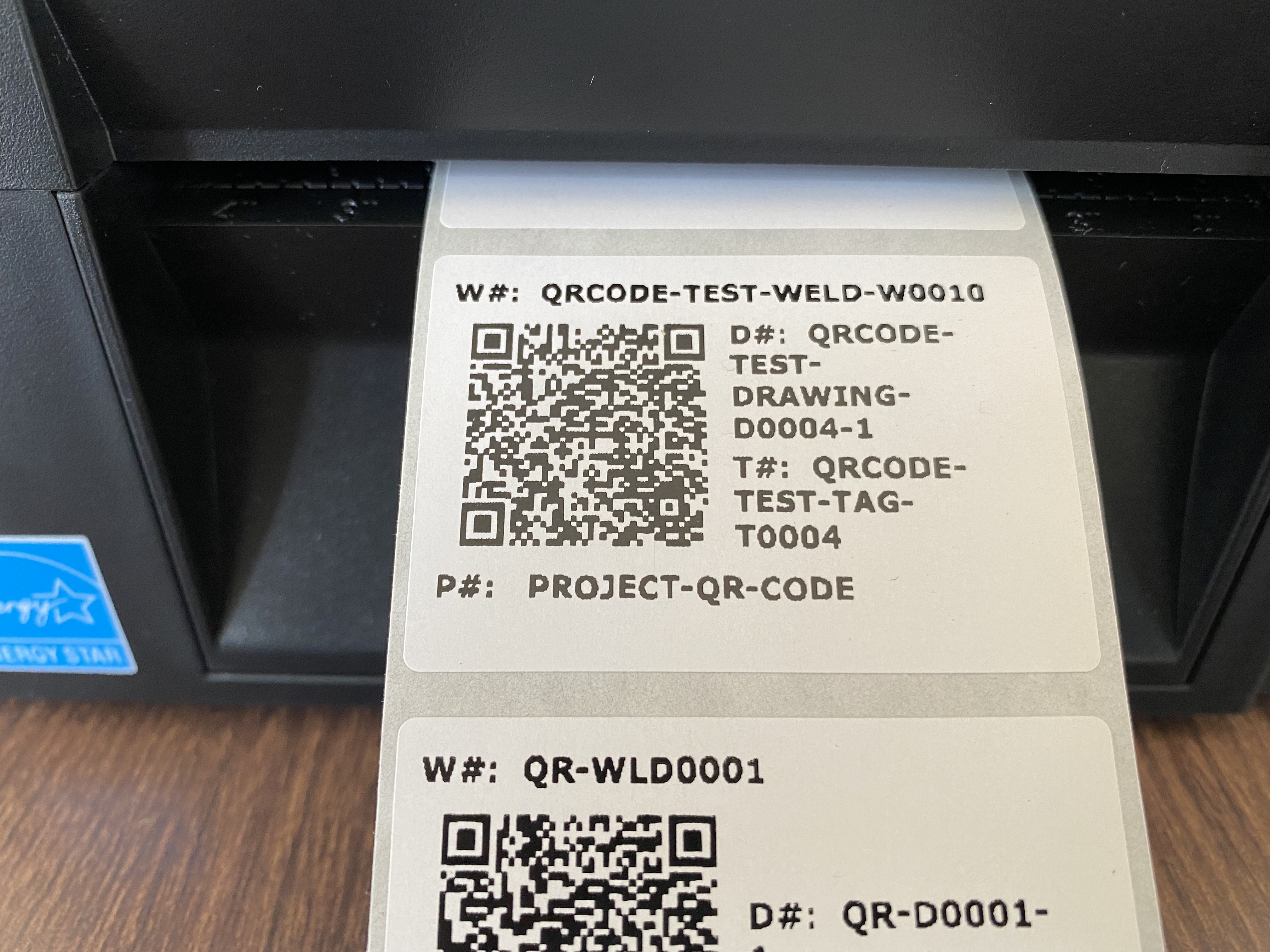

QR code labels for welds
Each QR code label will have a QR code that will have the weld's details. In addition, the weld number (W#), drawing number (D#), tag number (T#) and the project number (P#) will also be printed.
