Revise a post-weld heat treatment pack in WeldTrace

Revise a PWHT Pack

You can revise a PWHT pack to edit some of the requested details or add welds to the pack and remove welds from the pack.

Add welds to a PWHT Pack

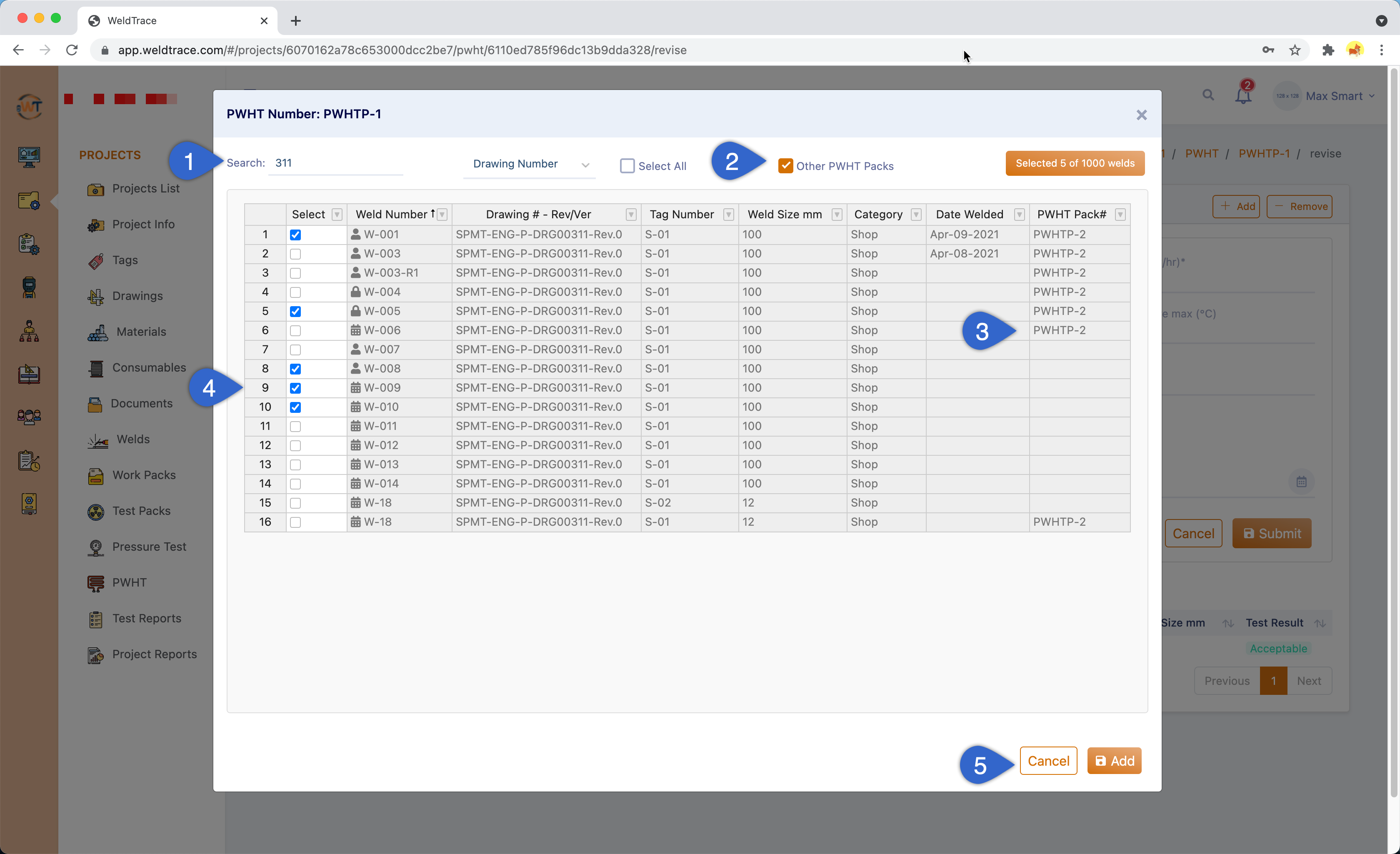

Revise a PWHT pack and add welds
  1. Use the search function and filter the welds;
  2. Check this box to include the welds that are added to other PWHT packs;
  3. If the checkbox for step 2 is checked, you will see the PWHT pack numbers displayed in this column;
  4. You may check specific welds or select all the welds. Please note that the data in this page cannot be edited;
  5. Click "Add" to add welds to the PWHT pack and you will be returned to the previous page, where you need to click "Submit" to complete the revision. A PWHT pack can have a maximum of 1000 welds;
A weld can be in more than one PWHT pack

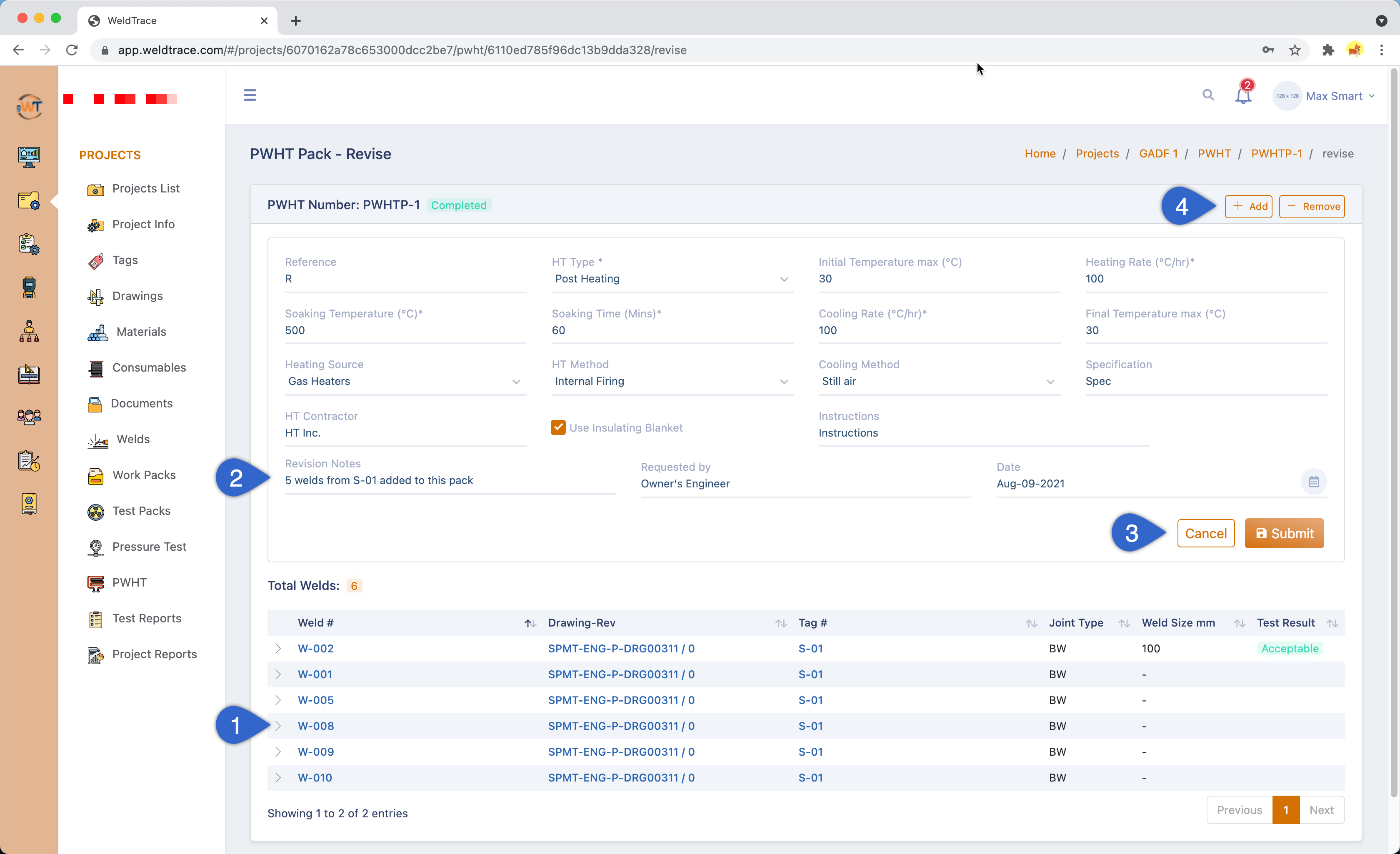

Revised PWHT Pack

Revised PWHT Pack
  1. The welds that were added in the previous step are listed here;
  2. Add revision notes and changes to any of the request fields can be made;
  3. Click the submit button to complete the revision process;
  4. Add or remove welds from the pack;

Remove Welds from a PWHT Pack

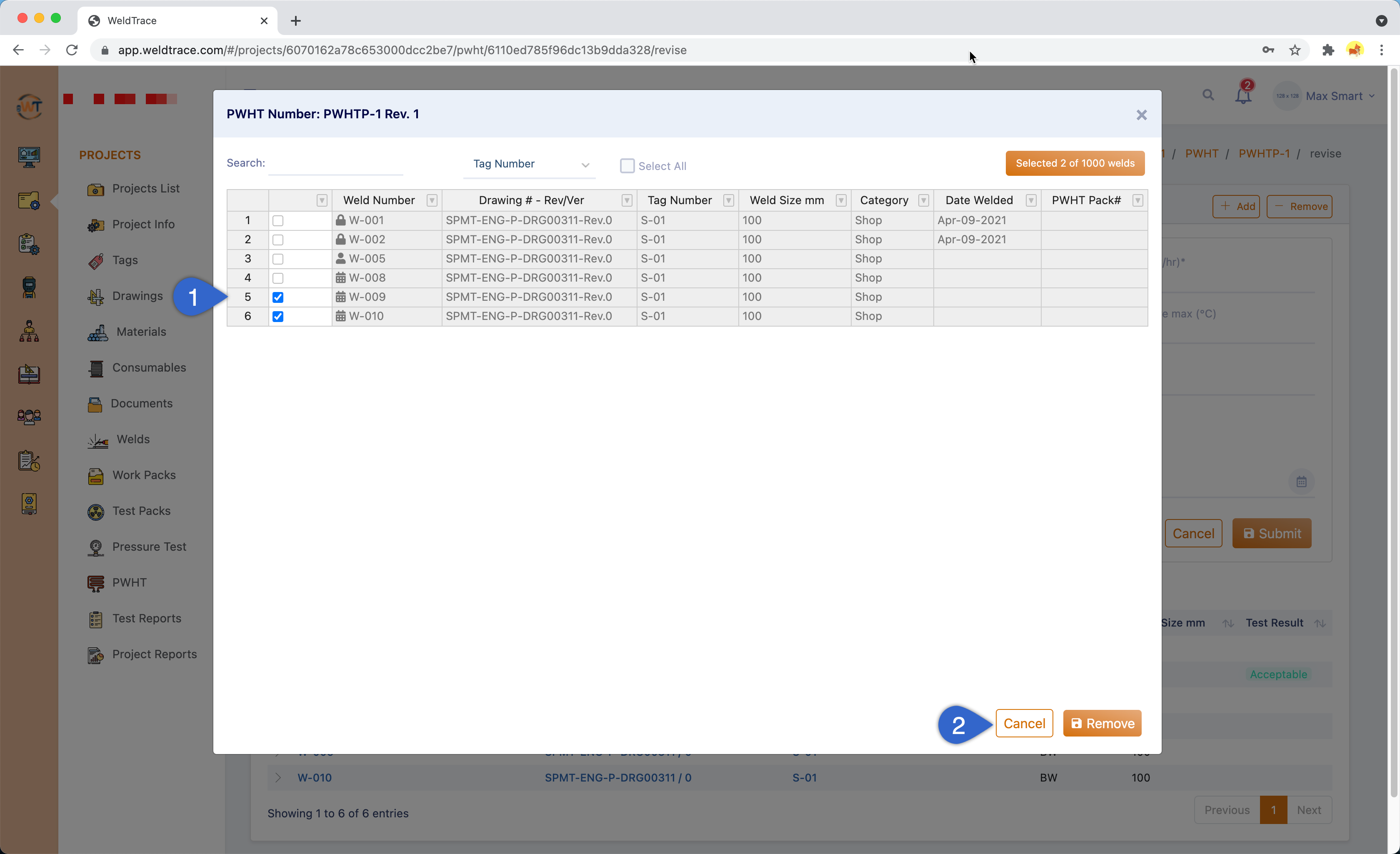

Remove welds from a PWHT pack
  1. This table will only list the welds that are already added to this pack. You may check specific welds or select all the welds. Please note that at least one weld must remain in the pack;
  2. Click on the remove button to remove the welds from this pack and you will be returned to the previous page, where you need to click "Submit" to complete the revision;

Revised PWHT Pack

Revised PWHT pack after removing some welds
  1. The welds that were removed in the previous step will be removed from this pack. If any of the welds that were removed previously had the PWHT status or results updated, they will be maintained;
  2. Add revision notes and changes to any of the request fields can be made;
  3. Click the submit button to complete the revision process;
Go to the next section: Test Reports
