WeldTrace mobile app for visual inspection of welds

Welding Inspectors can perform visual inspection with the mobile app

Welding Inspectors can perform stage wise or the final visual inspection of welds with the mobile app. The "Inspection" button in the weld details page will be enabled only for the welding inspectors.

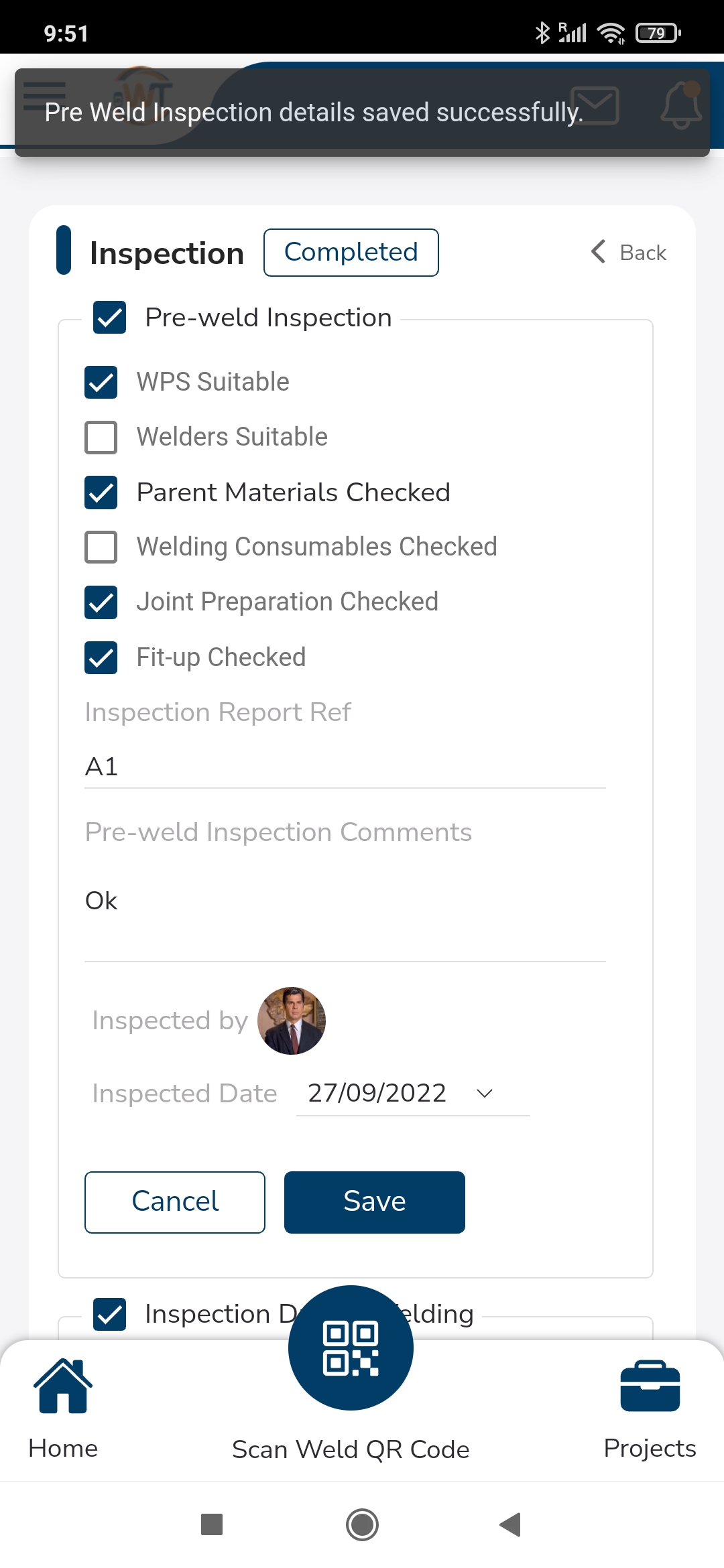

Pre weld inspection

Pre weld inspection

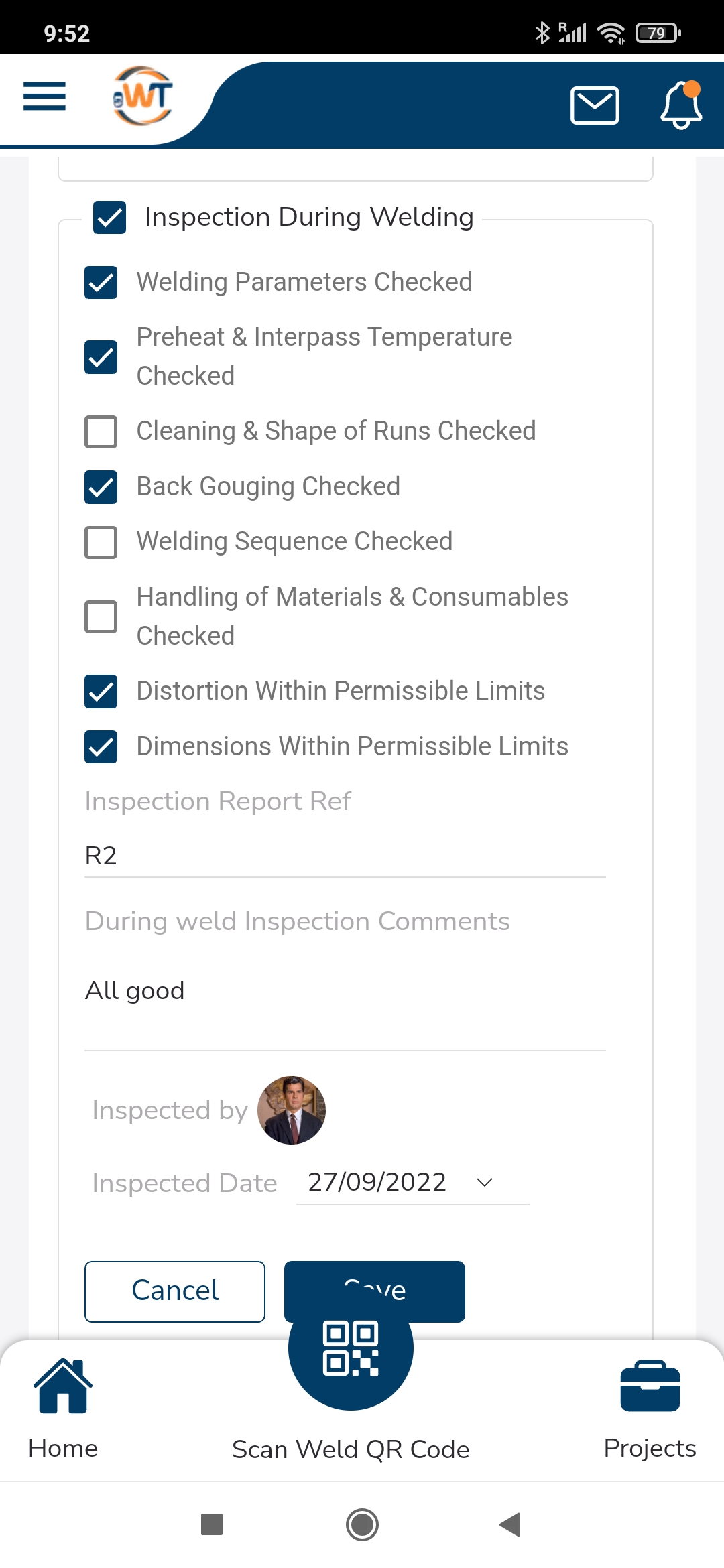

Inspection during welding to update parameters

Inspection during welding to record welding parameters

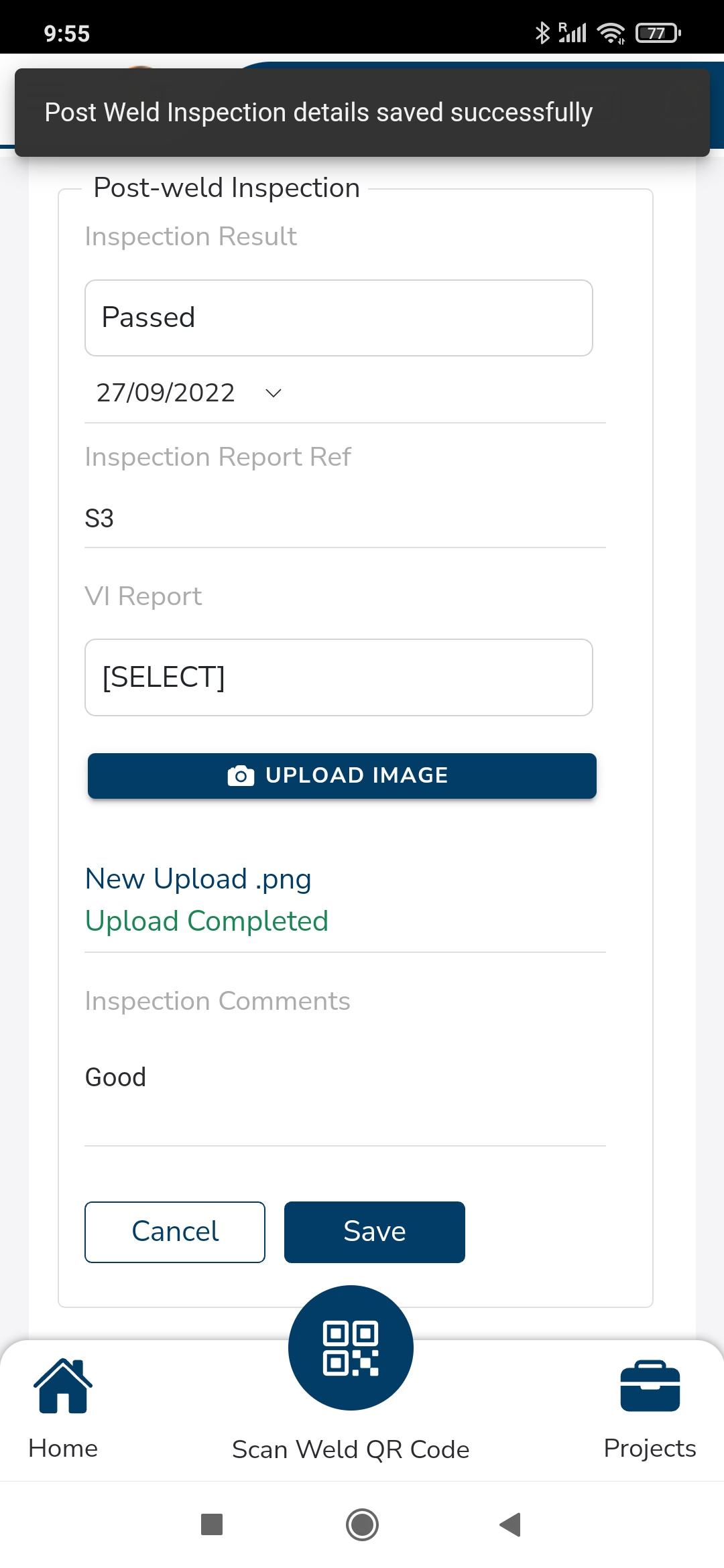

Post weld inspection

Post weld or final inspection

You can take a photo of the weld using the mobile phone's camera or upload an image from the phone.

These functions are very similar to performing visual inspection in the web application. Please read this article to learn more about performing visual inspection: Visual Inspection of Welds
