Work Pack and Weld Log

Work Pack and Weld Log

Work Pack Details

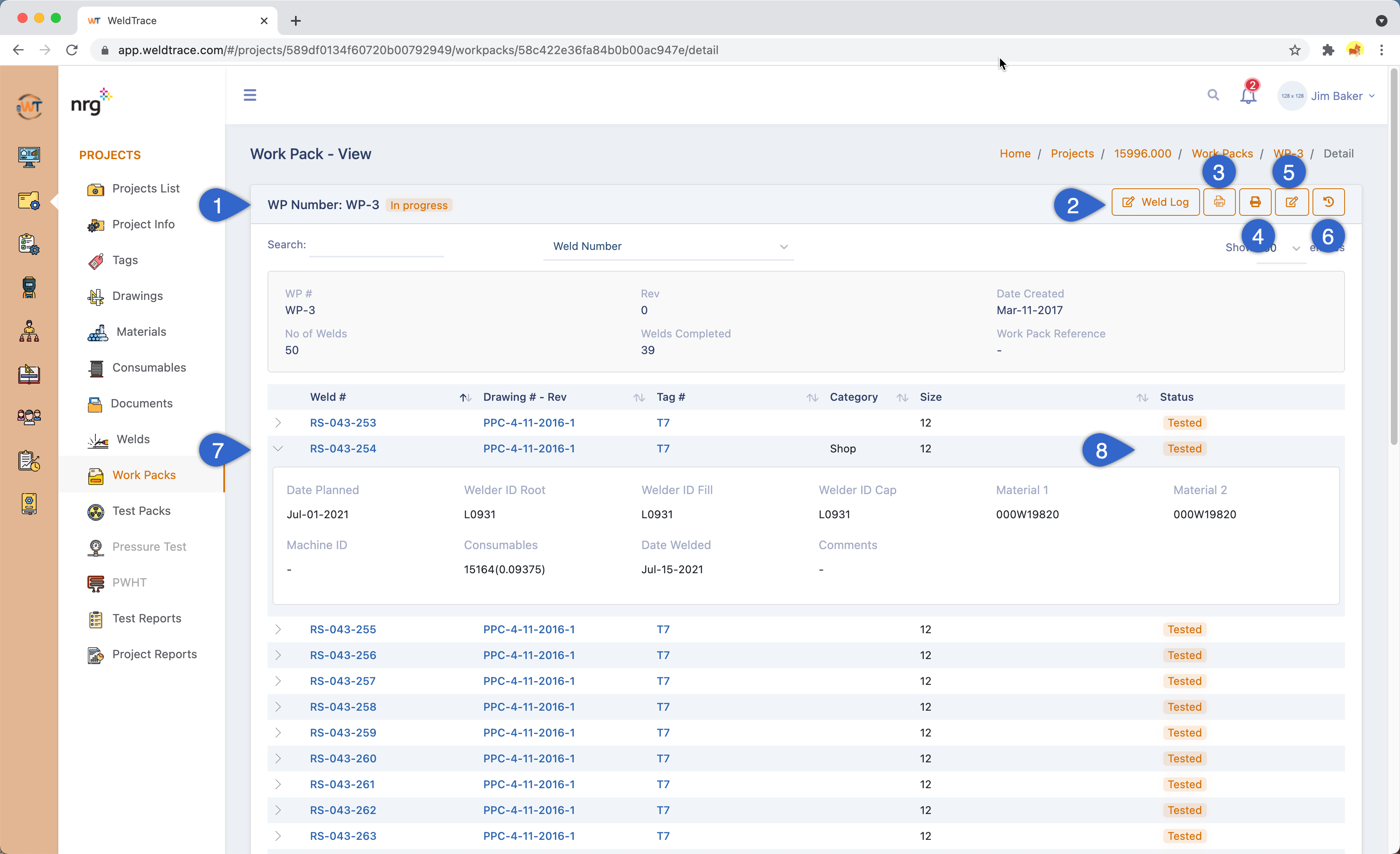

Work Pack details
  1. The work pack number, revision and the status;
  2. Weld Log - to view and edit the welds in the pack;
  3. Print the work pack to a PDF file;
  4. Print the weld maps for all the drawings in the work pack;
  5. Revise the work pack;
  6. View the revision history;
  7. View the weld's details;
  8. Status of the weld;

Weld Log

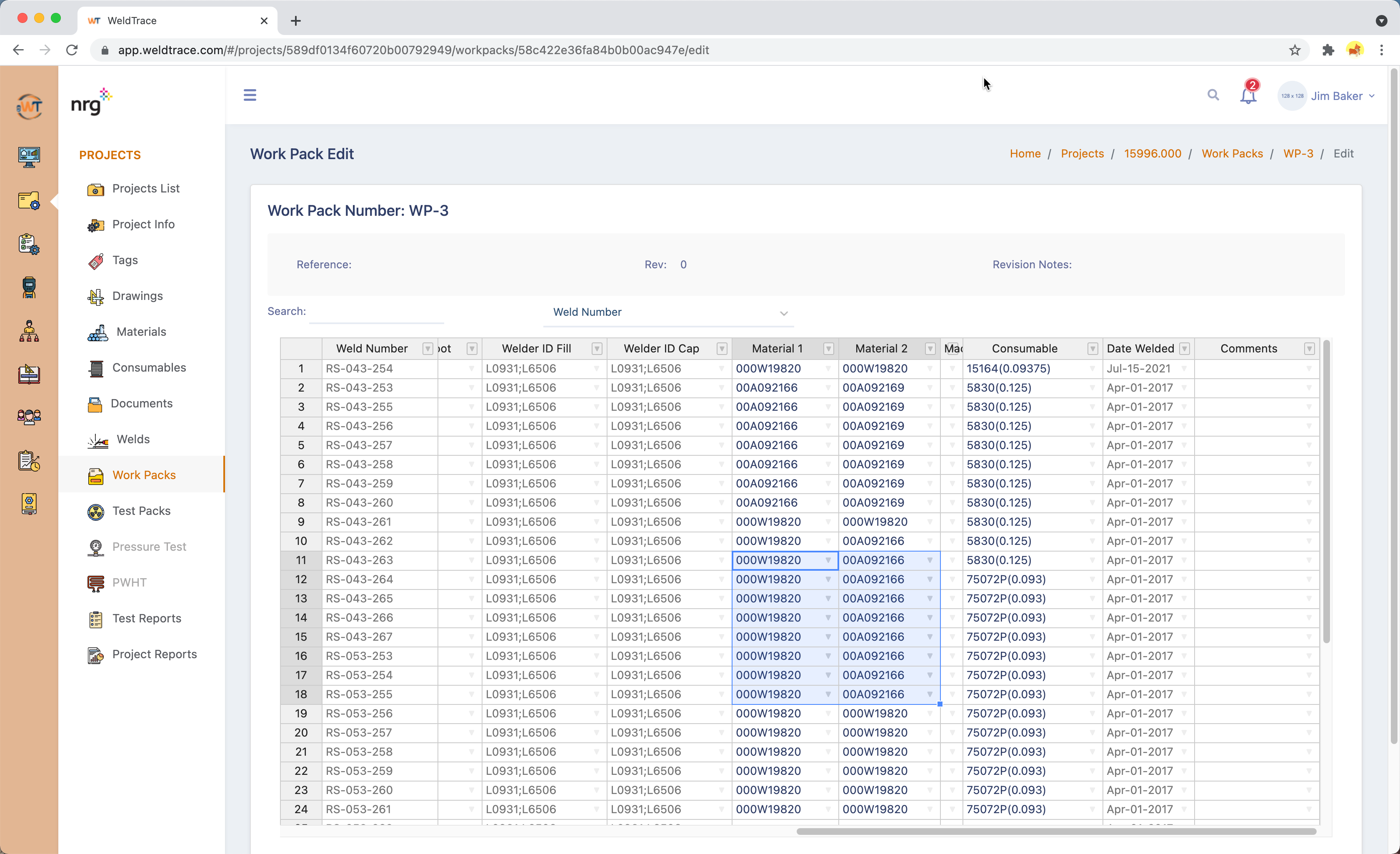

Weld Log for the work pack
The weld log will only show the welds that are in the pack. You can edit the welds and add or edit data. Please read the article Weld Log as the functionality is the same here as in that page.

Read the next article: Revise a Work Pack
